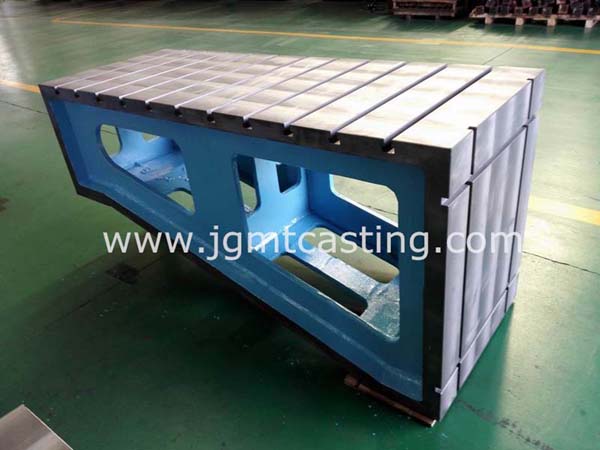

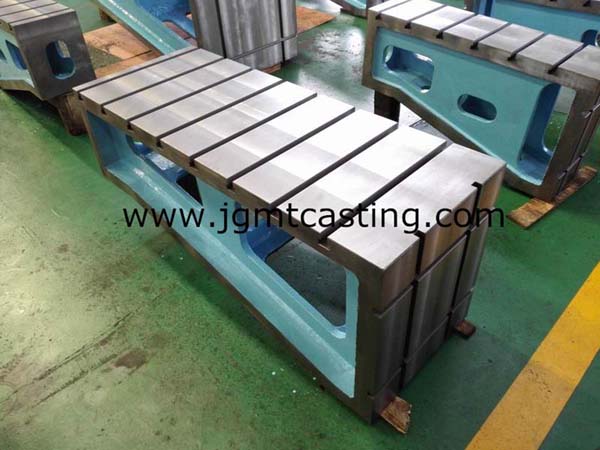

T-slotted Angle Plates

Jinggong has been for years supplying our angle plates worldwide to customers in the USA, Europe, Canada, Australia, the Middle East, etc. These angle plates are used as a workholding device to clamp and hold workpieces in the vertical position and as a vertical reference for inspection and tooling purposes in workshop machining processes such as shaping, planing, boring, milling, grinding and drilling, etc. They are also used to clamp motors, engines, transmissions etc. to carry out the assembly, tests, or inspections. Especially they are widely used to clamp workpiece on horizontal boring mills.



The types of angle plates are available as being T-slotted, elongated-hole-slotted and plain. The designs of these angle plates are always customized as per the actual applications.



T-slots as per DIN650 specifications or other types of slots defined by customers, can be machined on these angle plates.





The flatness accuracy machined to DIN876 specifications or specified by customers.



Our standard angle plates range from sizes of 100 x 150 mm to 3500 x 1500 mm. You can select the size and number of T-grooves. We also produce many other sizes with T-grooves and surface finishes to your requirements.

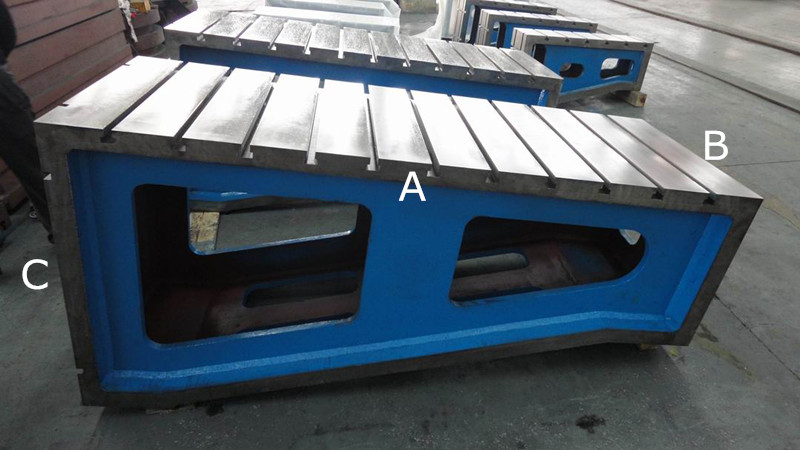

Standard sizes for reference:

No.

A (mm)

B (mm)

C (mm)

1

250

150

175

2

350

200

250

3

450

300

350

4

600

400

450

5

700

420

700

6

1000

600

1000

7

1500

900

1500

8

2000

900

2200

9

1500

800

800

10

1500

1000

800

11

1500

1250

800

12

1500

1500

800

13

2000

800

800

14

2000

1000

800

15

2000

1250

800

16

2000

1500

800

17

2500

800

800

18

2500

1000

1200

19

2500

1500

1200

20

3000

800

1200

21

3000

1000

1200

22

3000

1500

1200
