• Introduction

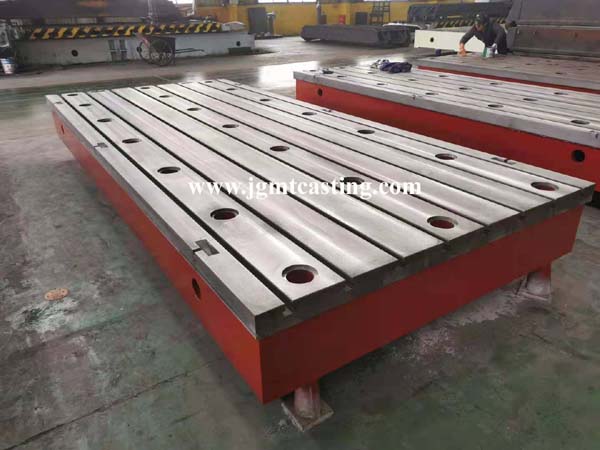

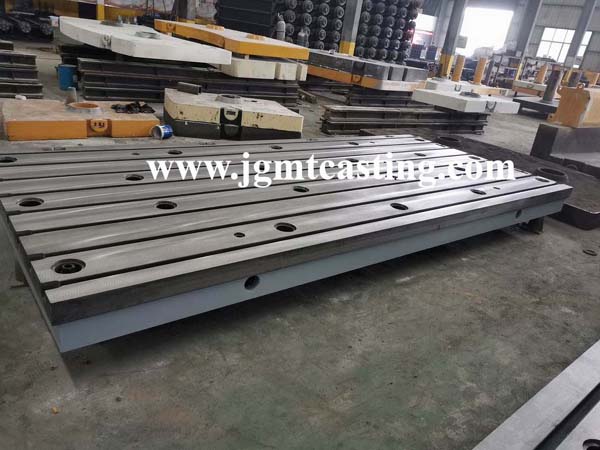

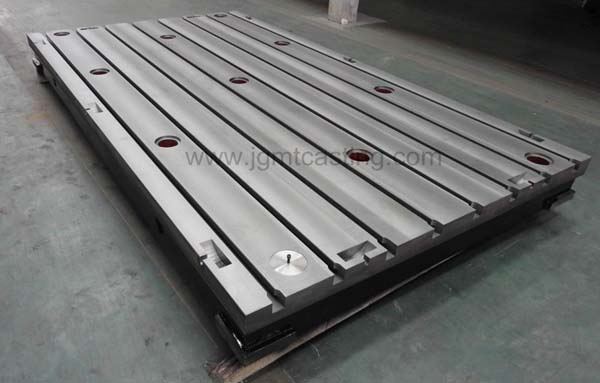

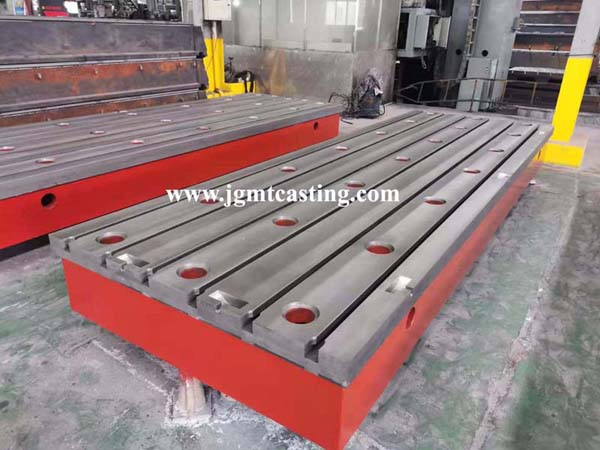

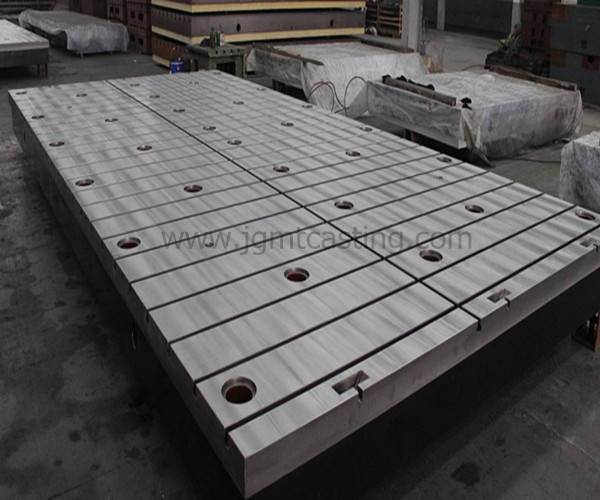

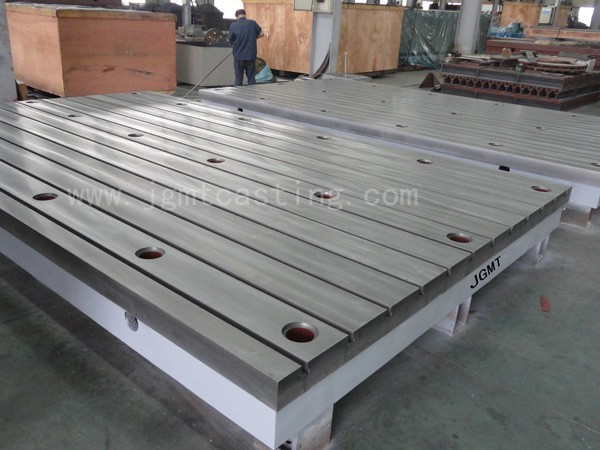

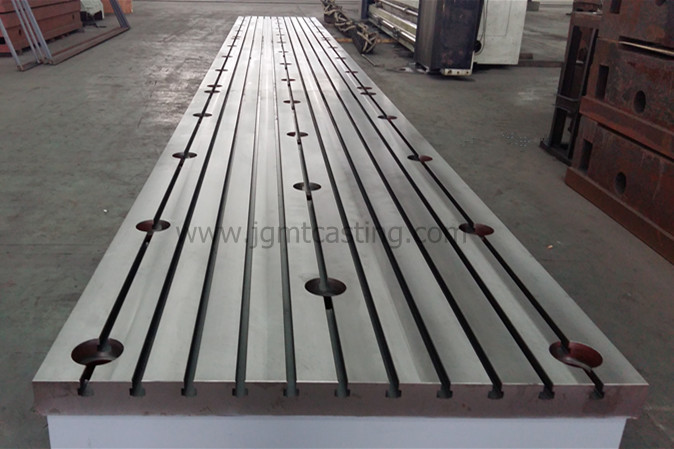

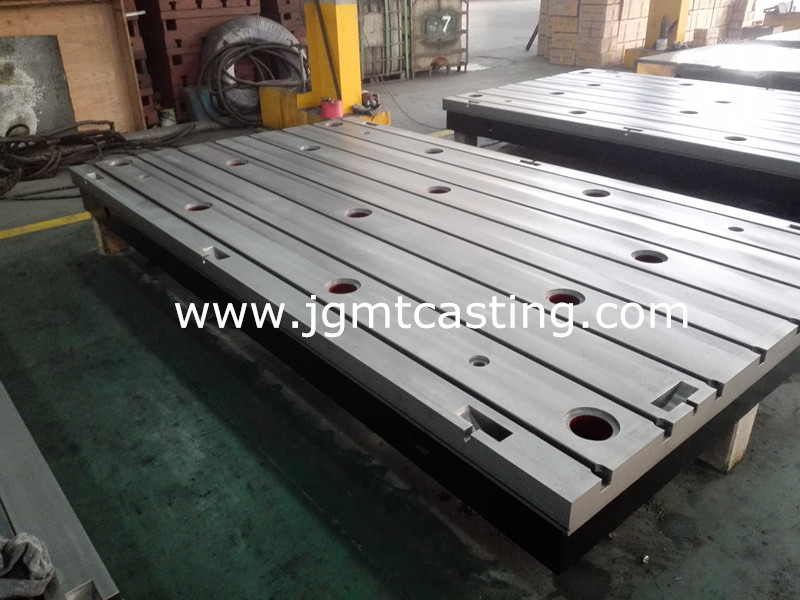

Jinggong Cast Iron Floor Plates is made from high-strength grey cast iron. These plates offer flexible universal clamping possibilities for all types of work pieces.

Jinggong plates are specially configured to suit customer requirements. The design, dimensions, and loading capacity of the plate can be tailored to suit the size and weight of the work pieces to be clamped.

The number and shape of the ribs can be adjusted to suit the specified loading requirements. The size of the T-slots in the plates is determined by the customer’s requirements in strength, tensile and compression.

Standard sizes:

No.
Sizes (mm)
Surface accuracy
(according to DIN876)
1
2000*2000*300
I/II/III
2
2500*2000*300
I/II/III
3
3000*2000*300
I/II/III
4
3500*2000*300
I/II/III
5
4000*2000*300
I/II/III
6
4500*2000*300
I/II/III
7
5000*2000*300
I/II/III
8
5500*2000*300
I/II/III
9
6000*2000*300
II/III
10
6500*2000*300
II/III
11
7000*2000*300
II/III
12
8000*2000*300
II/III

Other sizes and surface accuracy on request!
