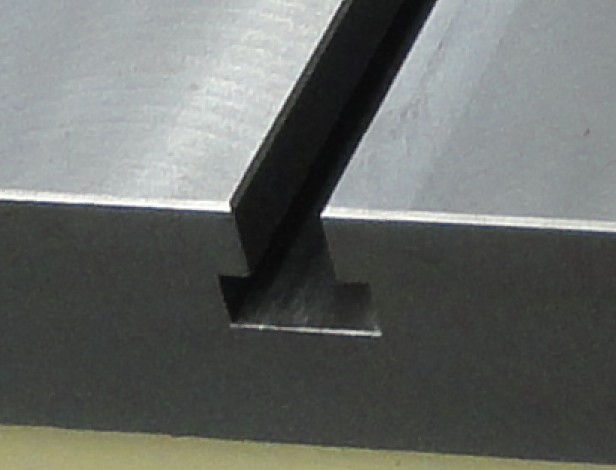

T-SLOTS ACCURACY TO DIN 650
Size of the T-slots
The size of the T-slots in the plates is determined by the tensile and pressure forces that occur. All standard dimensions in the sizes 18, 22, 28, 36 can be fitted in accordance with DIN 650 H7 to H12.
|
Dimensions
|
For screws
|
B (mm)
|
C (mm)
|
H (mm)
|
E (mm)
|
|
|
10
|
M 8
|
-
|
17.5 - 18
|
8
|
18
|
1.0
|
|
12
|
M 10
|
-
|
20.5 - 21
|
9
|
21
|
1.0
|
|
14
|
M 12
|
1/2"
|
23.5 - 24
|
10
|
24
|
1.0
|
|
16
|
M 14
|
-
|
26.5 - 27
|
11
|
27
|
1.0
|
|
18
|
M 16
|
5/8"
|
29.5 - 30
|
12
|
30
|
1.5
|
|
20
|
M 18
|
-
|
33.5 - 34
|
14
|
34
|
1.5
|
|
22
|
M 20
|
3/4"
|
37.5 - 38
|
16
|
38
|
1.5
|
|
24
|
M 22
|
7/8"
|
41.0 - 42
|
18
|
42
|
1.5
|
|
28
|
M 24
|
1"
|
47.0 - 48
|
20
|
48
|
1.5
|
|
32
|
M 27
|
1 1/8"
|
54
|
22
|
54
|
1.5
|
|
36
|
M 30
|
1 1/4"
|
60
|
25
|
61
|
2.0
|
|
42
|
M 36
|
1 1/2"
|
70
|
29
|
74
|
2.0
|
Spacing of the T-slots
The T-slot spacing of our standard products is 150, 200, 250 and 300 mm.
