• Introduction

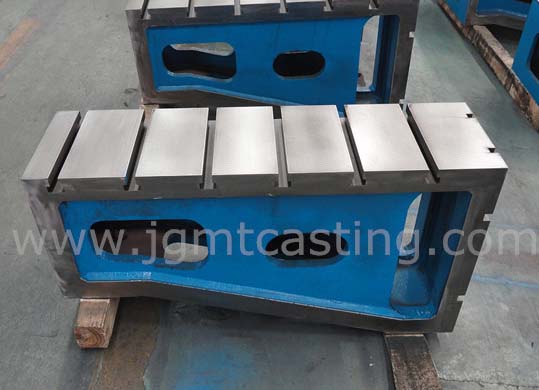

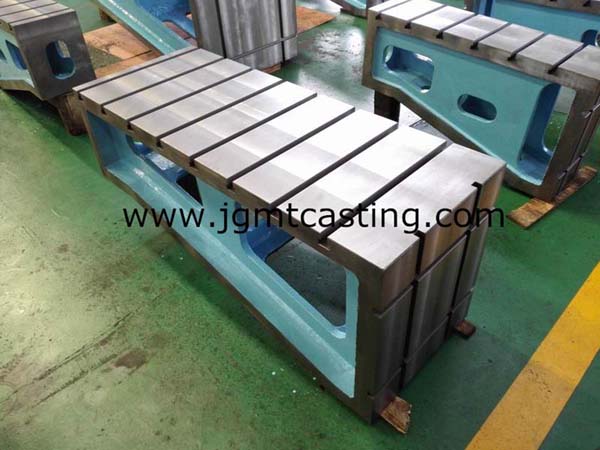

Jinggong Cast Iron Angle Plates with a box-shaped cast design are required for almost all boring and milling machines to fix workpieces in a vertical position. The clamping surfaces of the standard angle plates have been machined in accordance with DIN 876 standard and provided with T-slots in accordance with DIN 650.

The bases of the angle plates have clamping slots and drill-holes adjusted to the clamping options of the machine table.

Dimensions and T-slots size can be varied according to your requirements.

Type A: T-slot Angle Plates

Material: grey cast iron GG25 (HT-250);
Surface DIN876/III, DIN876/II machined;
Clamping surface with T-slots according to DIN650;

Dimension available:
A
B
C
mm
inch
mm
inch
mm
inch
1500
59
800
31
800
31
1500
59
1000
39
800
31
1500
59
1250
49
800
31
1500
59
1500
59
800
31
2000
79
800
31
800
31
2000
79
1000
39
800
31
2000
79
1250
49
800
31
2000
79
1500
59
800
31
2500
98
800
31
800
31
2500
98
1000
39
1200
47
2500
98
1250
49
1200
47
2500
98
1500
59
1200
47
3000
118
800
31
1200
47
3000
118
1000
39
1200
47
3000
118
1250
49
1200
47
3000
118
1500
59
1200
47
Other sizes can be offered on request.
