• Introduction

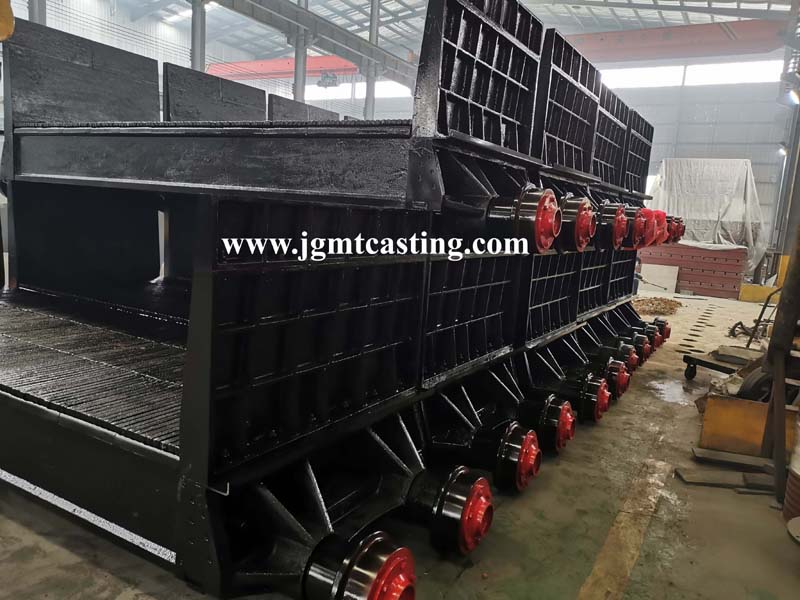

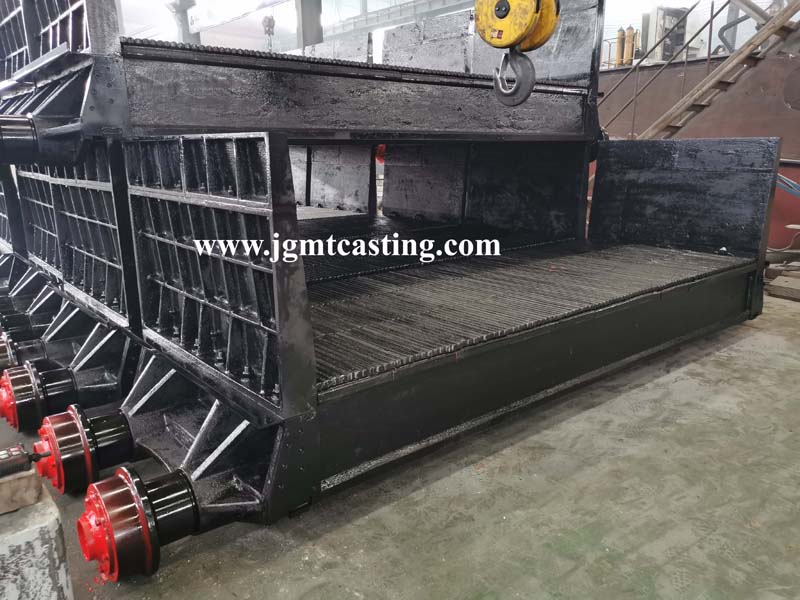

Sintering Pallets are of important parts of sintering machines. The pallets are consists of pallet body, roller cover, wheel, axle, side wall plates, side sealing plates of ignition furnace, grate bars, bolt insulating pieces, wearing plates etc.



Jinggong Sintering Pallets are made of nodular cast iron or special steel, have the features of reasonable design, reliable performance and low energy consumption.



The Sintering Pallets, as serial products for updated sintering machines, could meet needs of new made sintering machines, as well as current sintering machines with areas of 18m2, 24m2, 27 m2, 33m2, 36m2, 39 m2, 50m2, 75m2, 90m2, 105m2, 110m2, 130m2, 180m2, 265m2, 300m2, etc.



Main technical parameters:

Width of Sinter Machine( m )

Length of Pallet( m )

Rail Height( m )

Available for the Sinter Machines ( m2 )

1.2

0.75

0.3-0.4

24

1.4

0.75

0.3-0.4

24

1.5

1

0.3-0.4

18,24,27,33,36,39

2

1

0.3-0.4

26,50

2.5

1

0.3-0.4

79,90,105,110,130

3

1

0.4-0.5

132

Other special specifications are available and welcome to customize with your own drawings!
