• Introduction

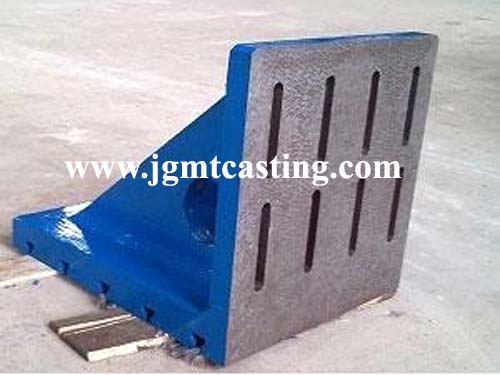

Jinggong Cast Iron Angle Plates with a box-shaped cast design are required for almost all boring and milling machines to fix workpieces in a vertical position. Have clamping slots and drill-holes adjusted to the clamping options of the machine table.



Dimensions and T-slots sizes can be varied according to your requirements.



Type C: Right Angle Plates

Material: grey cast iron GG25 (HT-250);

Working surfaces and sides offered with hand-scraped finish;

Squareness of faces within 10 microns per 100 mm;

Parallelism of faces within 10 microns per 100 mm;

Sizes offered from 100x100x125mm (4x4x5inch) to 300x300x600mm (12x12x24inch).
