• Introduction

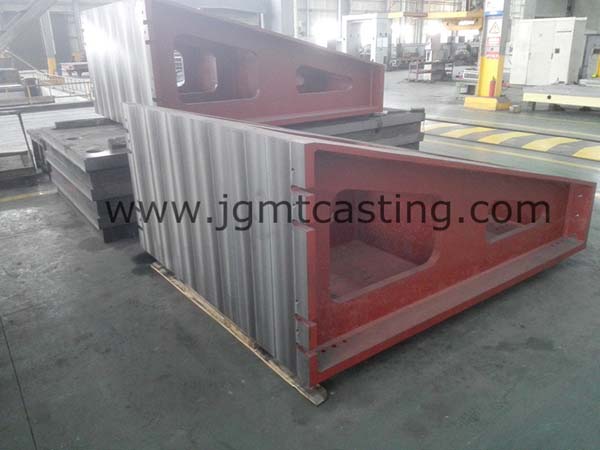

Cast Iron Angle Plate is used as work-holding devices to clamp and hold workpieces in the vertical position and as a vertical reference for inspection and tooling purposes in machining processes such as shaping, planning, boring, milling, grinding and drilling, etc.

  • Made from cast iron GG25 (HT-250).
  • Foundry process: sand casting
  • Multiple clamping slots for easy mounting of workpieces.
  • Specification: customize
  • Hardness of the working surface: HB170-210
  • Surface according to DIN876/III, DIN876/II.
  •

Standard sizes for reference:

A

B

C

mm

inch

mm

inch

mm

inch
