- Introduction

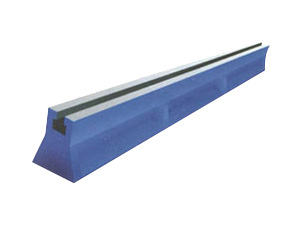

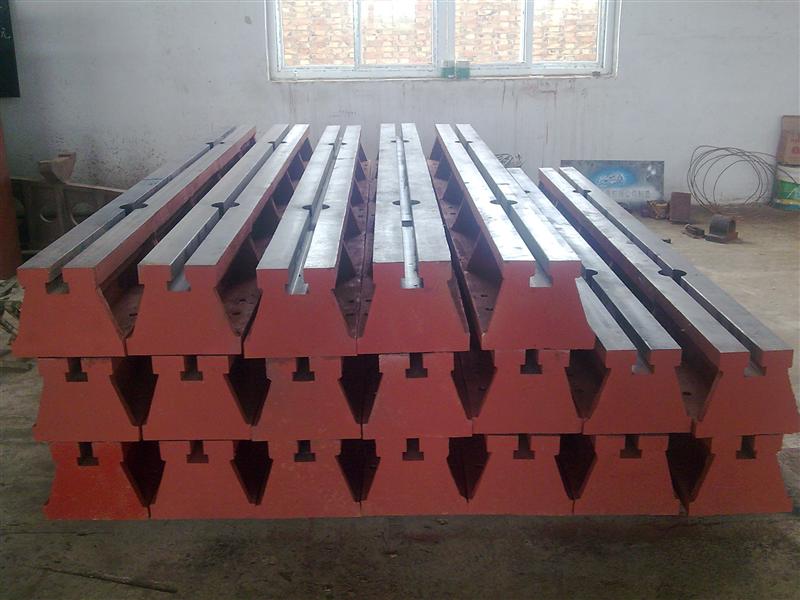

The floor clamping rails provide economical solutions for large planes with T-slotted Floor area for assembly, fabrication and testing of large components / machines etc. The rails are mounted to the floor using anchor bolts and level screws, then exactly aligned and grouted in place. This provides a surface with the required clamping possibilities. Each rail comes with a T-slot according DIN 650 and T-slot removal pockets.
The type A are mounted to the floor using anchor bolts located at both sides of the rail.

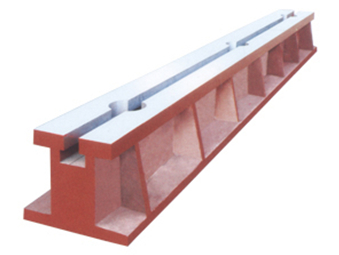

The type B have anchor holes located in the center of the T-slot. The abutting surfaces are machined square to the working surface to allow exact positioning of multiple single rails.
Technical Data (Standard):
Technical Data (Standard):
|
L(mm)
|
200
|
300
|
500
|
800
|
1000
|
1200
|
1500
|
2000
|
2500
|
|
DIN 876/III
|
48
|
52
|
60
|
72
|
80
|
88
|
100
|
120
|
140
|
|
DIN 876/II
|
24
|
26
|
30
|
36
|
40
|
44
|
50
|
60
|
70
|
|
DIN 876/I
|
12
|
13
|
15
|
18
|
20
|
22
|
25
|
30
|
35
|
|
DIN 876/0
|
4.8
|
5.2
|
6
|
7.2
|
8
|
8.8
|
10
|
12
|
14
|
|
L(mm)
|
3000
|
3500
|
4000
|
4500
|
5000
|
5500
|
6000
|
6500
|
7000
|
|
DIN 876/III
|
160
|
180
|
200
|
220
|
240
|
260
|
280
|
300
|
320
|
|
DIN 876/II
|
80
|
90
|
100
|
110
|
120
|
130
|
140
|
150
|
160
|
|
DIN 876/I
|
40
|
45
|
50
|
55
|
60
|
65
|
70
|
75
|
80
|
|
DIN 876/0
|
16
|
18
|
20
|
22
|
24
|
26
|
28
|
30
|
32
|
