Type JGSF-A

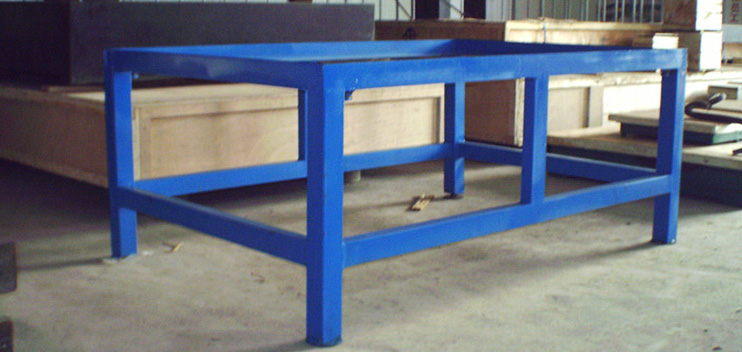

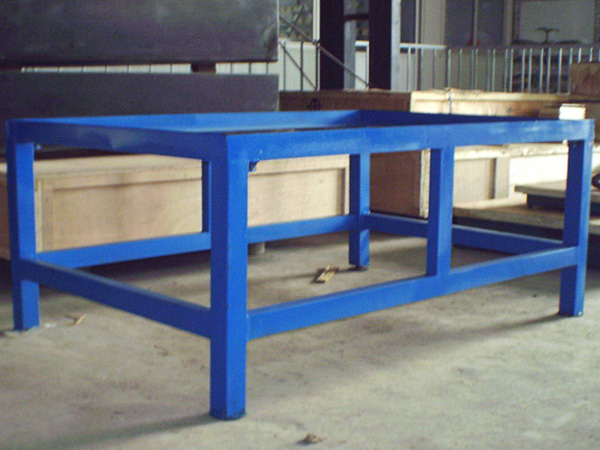

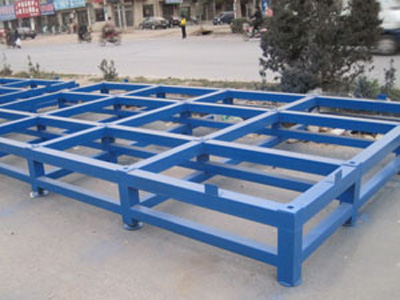

The support frames for straightening plates consist of a heavy duty construction with welded steel sections, measured to give an approximate working height of 800 mm (normal height). Other working heights are available on request.
● Material: sturdy welded iron construction
● Working height approx. 800 mm (standard – incl. plate)
● Flexible in use
Technical Data (Standard):
Type JGSF-B
|
No.
|
Sizes(mm)
|
No. of Legs
|
Approx Weight(kg)
|
|
JGSF-A-01
|
400x400
|
4
|
16
|
|
JGSF-A-02
|
500x500
|
4
|
27
|
|
JGSF-A-03
|
600x600
|
4
|
29
|
|
JGSF-A-04
|
700x700
|
4
|
42
|
|
JGSF-A-05
|
800x800
|
4
|
46
|
|
JGSF-A-06
|
1000x800
|
4
|
50
|
|
JGSF-A-07
|
1000x1000
|
4
|
54
|
|
JGSF-A-08
|
1200x800
|
4
|
54
|
|
JGSF-A-09
|
1200x1000
|
4
|
65
|
|
JGSF-A-10
|
1500x1000
|
4
|
72
|
|
JGSF-A-11
|
2000x1000
|
4
|
86
|
|
JGSF-A-12
|
2000x1500
|
6
|
105
|
|
JGSF-A-13
|
2500x1000
|
6
|
100
|
|
JGSF-A-14
|
2500x1500
|
6
|
180
|
|
JGSF-A-15
|
3000x1000
|
6
|
160
|
Type JGSF-B

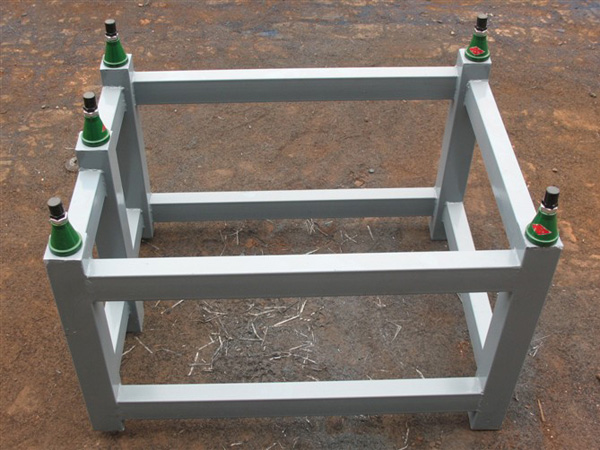

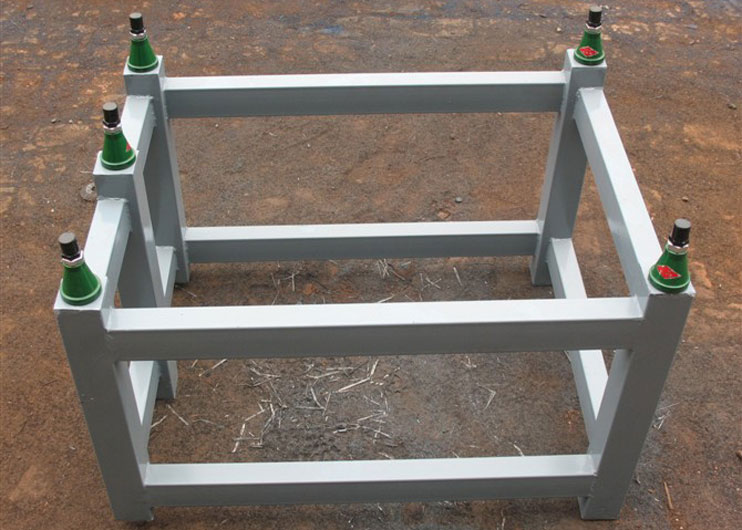

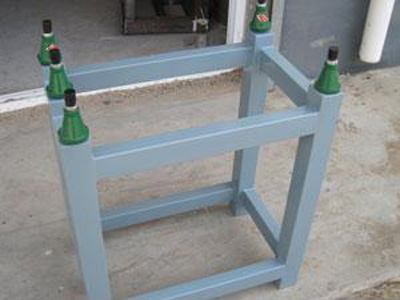

This support frame is especially for use with marking-off tables and surface plates, manufactured from welded steel sections for maximum rigidity. For precision plates it is recommended that optional leveling screws be specified to allow the plates to be aligned accurately in the horizontal plane.
● Material: sturdy welded iron construction (section steel)
● Working height approx. 800 mm (standard – incl. plate)
● Flexible in use
● Variable dimensions
Technical data (Standard):
|
No.
|
Sizes(mm)
|
No. of Legs
|
Approx Weight(kg)
|
|
JGSF-B-01
|
400x400
|
4
|
15
|
|
JGSF-B-02
|
500x500
|
4
|
24
|
|
JGSF-B-03
|
600x600
|
4
|
27
|
|
JGSF-B-04
|
800x800
|
4
|
44
|
|
JGSF-B-05
|
1000x800
|
4
|
49
|
|
JGSF-B-06
|
1000x1000
|
4
|
52
|
|
JGSF-B-07
|
1200x800
|
4
|
52
|
|
JGSF-B-08
|
1500x1000
|
4
|
70
|
|
JGSF-B-09
|
2000x1000
|
6
|
82
|
