- Introduction

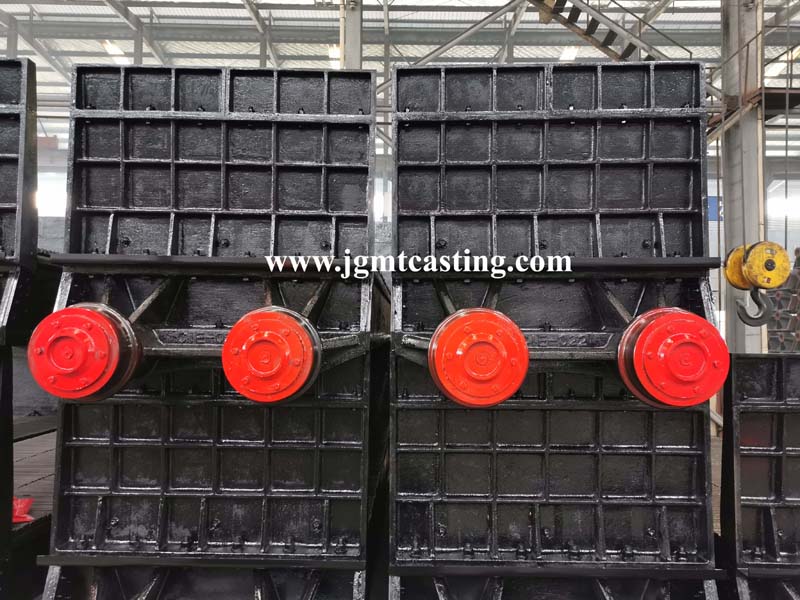

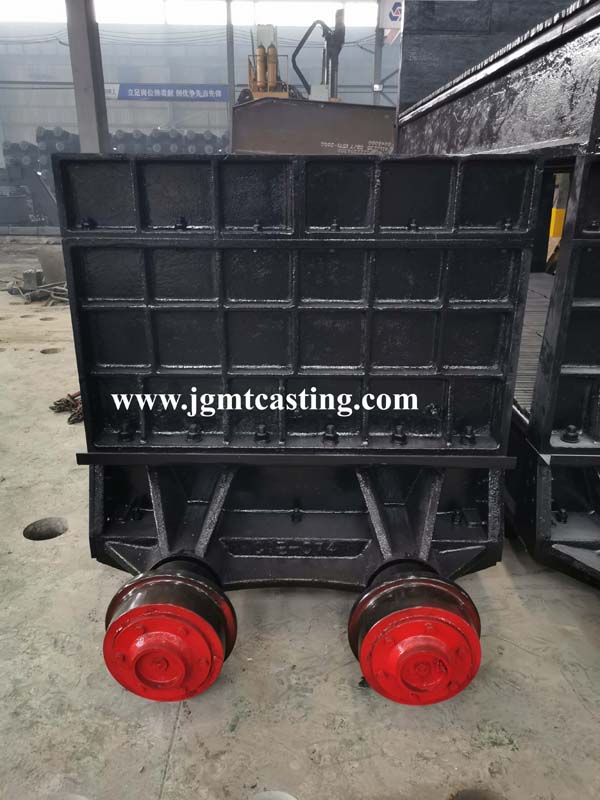

Jinggong Measuring Tools specializes in manufacture of all type of Sinter Pallet Cars in nodular cast iron or special steel.
The pallets, as serial products for updated sinter machines, are suitable for requirements of new sintering machines as well as production demand of current sinter machines of various areas, have the features of high performance, durability and total lack of deflection in metal structures.
Main technical parameters:
|
Width of Sinter Machine( m ) |
Length of Pallet( m ) |
Rail Height( m ) |
Available for the Sinter Machines ( m2 ) |
|
1.5 |
1.0 |
0.3-0.4 |
36,39 |
|
2.0 |
1.0 |
0.3-0.4 |
50 |
|
2.5 |
1.0 |
0.3-0.4 |
75,90,105,110,130 |
|
3.0 |
1.0 |
0.4-0.5 |
132 |
|
3.5 |
1.5 |
0.4-0.5 |
180 |
|
4.0 |
1.5 |
0.4-0.5 |
300 |
|
5.0 |
1.5 |
0.5-0.6 |
450 |
Other special specifications are available and welcome to customize with your own drawings!
