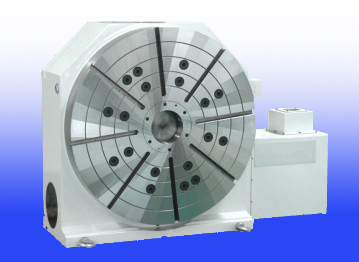

JGH13 series Horizontal/Vertical NC Rotary Tables
- Introduction
Application
Suitable for NC milling and machining centers.
Charecteristic
1. This series rotary table with though hole in the spindle center is suitable for horizontal/vertical position machining.
2. This series rotary table is usually used in combination with the control of CNC machine tools. It could do continuous cutting work for the spare parts in board type, disk type as well as other parts.

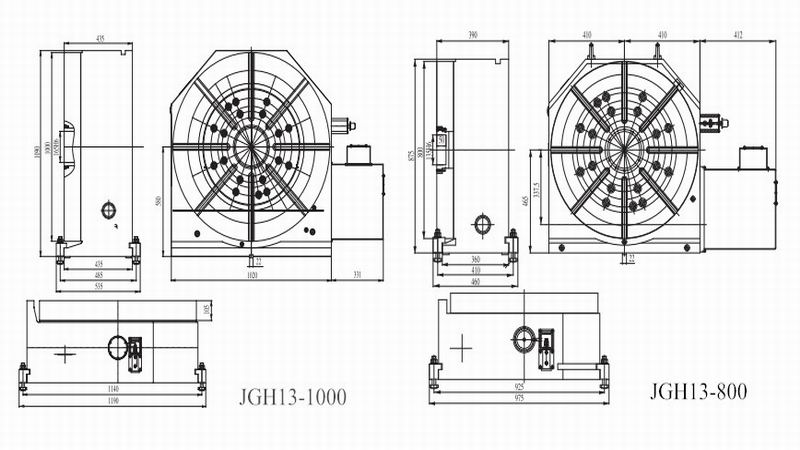

Specifications
|
No. |
Items |
JGH13-800 |
JGH13-1000 |
|
|
1 |
Turntable diameter (mm) |
Φ800 |
Φ1000 |
|
|
2 |
Perpendicular center height (mm) |
465 |
580 |
|
|
3 |
Total thickness (mm) |
390 |
435 |
|
|
4 |
Center bore diameter (mm) |
Φ135 (Φ230) H6 |
Φ165 (Φ255) H6 |
|
|
5 |
Locating key size(mm) |
22 |
22 |
|
|
6 |
T-slot size(mm) |
8-18H12 |
8-22H12 |
|
|
7 |
The transmission ratio of worm gear |
1:120 |
1:120 |
|
|
8 |
Total transmission ratio |
1:360 |
1:360 |
|
|
9 |
Max. speed (r/min) |
5.5 |
5.5 |
|
|
10 |
Table graduation angle per pulse |
0.001° |
0.001° |
|
|
11 |
Servo motor |
Torque(Nm)≥22 Output power(kw)≥3.8 |
Torque(Nm)≥22 Output power(kw)≥3.8 |
|
|
12 |
Standard electromotor |
FANUCα22 |
FANUCα22 |
|
|
13 |
Dividing accuracy |
15" |
15" |
|
|
14 |
Accuracy of repeatability |
4" |
4" |
|
|
15 |
Clamp torque (Nm) |
By oil 15X105Pa 6000 |
||
|
By air 5X105Pa 2000 |
||||
|
16 |
Load capacity horizontal (kg) |
2000 |
||
|
Load capacity vertical (kg) |
750 |
|||
|
17 |
Approx. weight |
1300 |
1900 |
|
Remarks
1. Standard table sizes are from 800mm~1000mm, others also can be produced according to the customer’s drawings.
2. The motor should be prepared by customers themselves.
