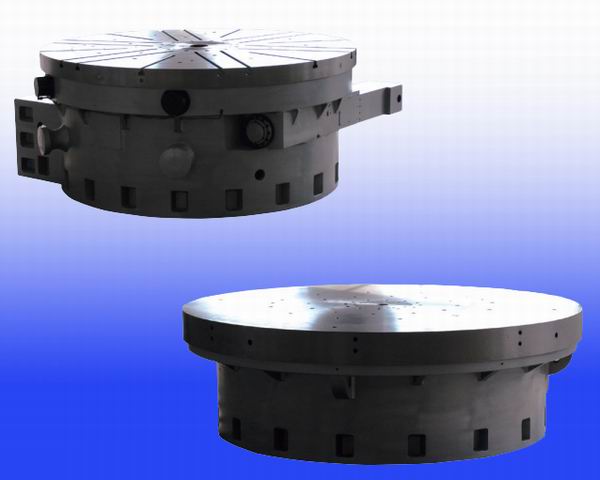

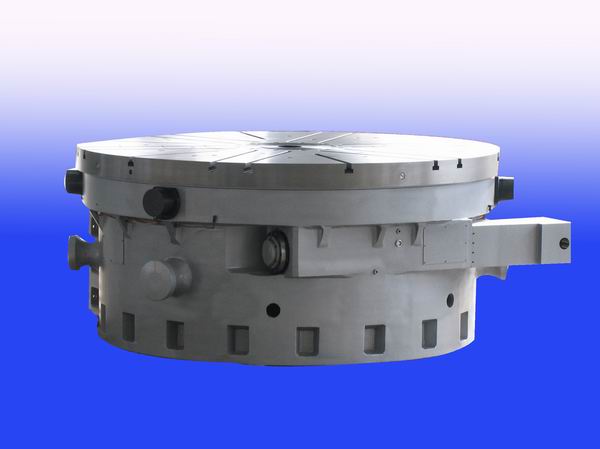

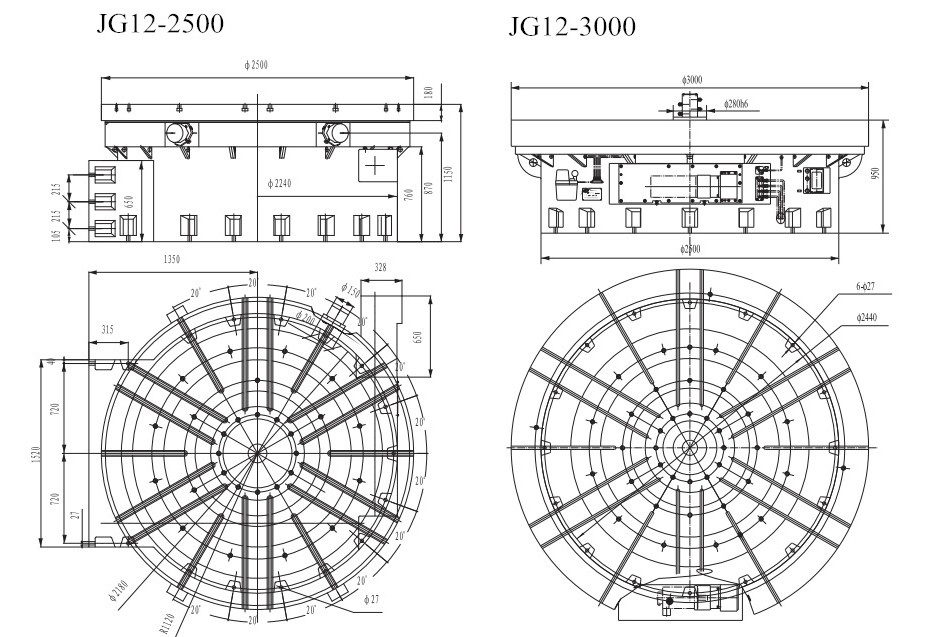

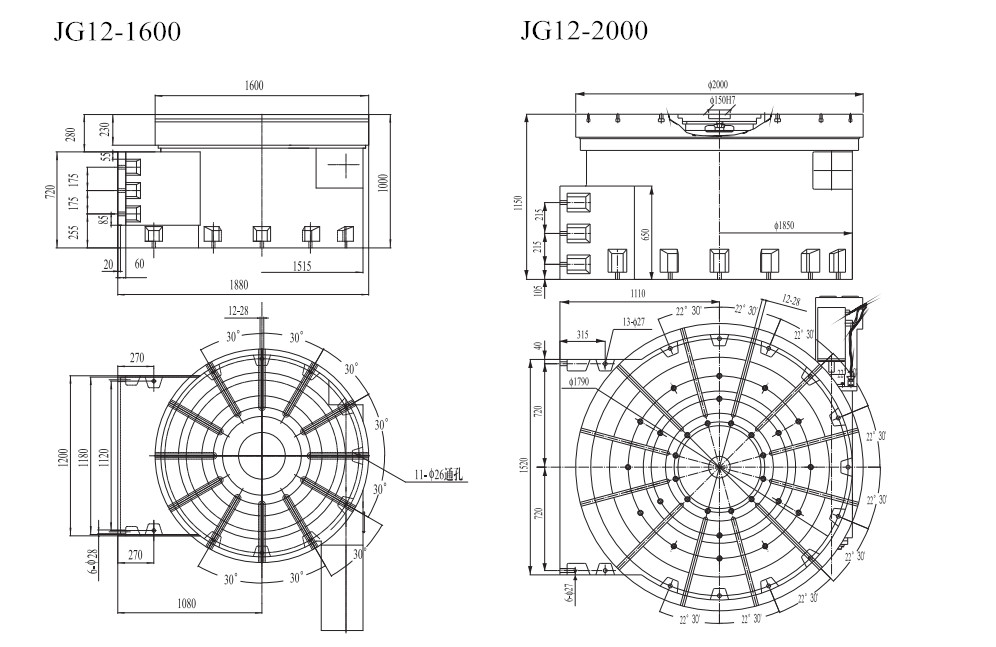

JG12 series Rotary Turning Table

  • Introduction

Application

Turning, milling and grinding of big and heavy components.

Specifications



No.

Items

JG12-1600

JG12-2000

JG12-2500

JG12-3000

1

Turntable diameter (mm)

Φ1600

Φ2000

Φ2500

Φ3000

2

Total thickness (mm)

1000

1150

1100

950

3

Center bore diameter (mm)

Φ150H7(Φ350)

Φ150H7

Φ150H7

Φ280H6

4

T-slot size (mm)

12~28

12~28

18~28

NO OR 28

5

The transmission ratio of worm gear

1:180

1:176

1:216

1:220

6

Total transmission ratio

1:720

1:1760

1:2160

1:1200

7

Max. speed (r/min)

4.1

1.1

1

1

8

Table graduation angle per pulse

0.001°

0.001°

0.001°

0.001°

9

Standard electromotor

1FT6105

1FT6105

1FT6105

HF903S

10

Horizontal bearing capacity (kg)

12000

15000

20000

30000

11

Max torque capacity of worm gear (N.M)

15000

20000

30000

30000

12

Max. rotational inertia of workpiece (kg.cm.s²)

50000

76500

159000

/

13

Dividing accuracy

15"

20"

20"

25"(10")

14

Accuracy of repeatability

4"

4"

4"

6"(4")

15

Approx. weight (kg)

9000

14500

19500

22500

16

The torque of servo motor (N.m)

36

50

50

50


 Remarks

1.      Standard table sizes are from 1600mm~3000mm, others also can be produced according to the customer’s drawings.

2.      Table top could be round or square per your requirements.

3.      The motor should be prepared by customers themselves.
