- Introduction

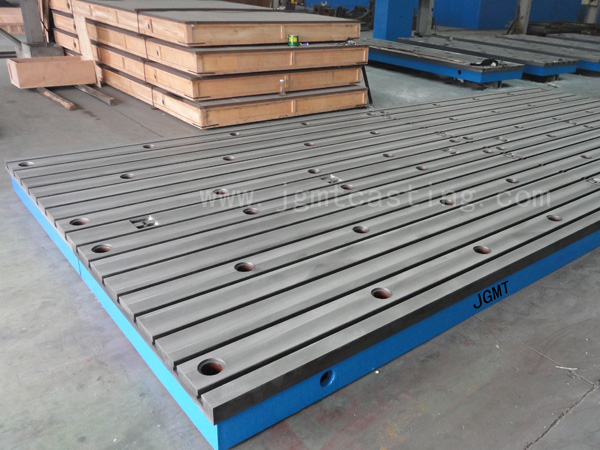

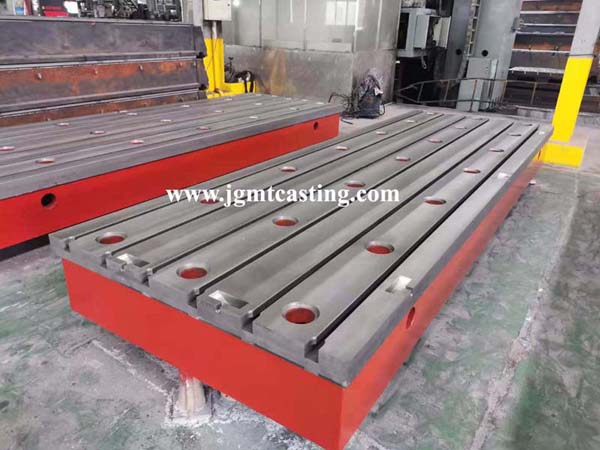

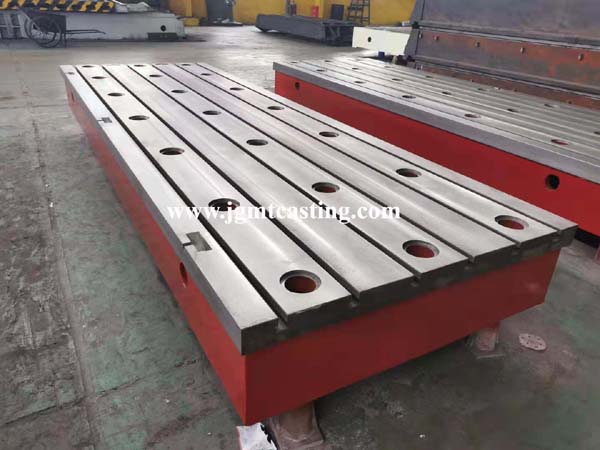

Jinggong Cast Iron T-slot Base Plates are used in various inspection works and usually as the base plate in precise testing. Check the size precision or geometric tolerances of the components, then marking; they are the fundamental tools in machinery manufacture.
l Material: GG20-GG30 (HT-200-HT-300).
l Standard: flatness according to DIN876 and T-slots according to DIN650.
l Specification: 750x1000-3000x8000mm or customize.
Standard sizes for reference:
|
No. |
Sizes (mm) |
Surface accuracy (according to DIN876) |
|
1 |
2000*2000*300 |
I/II/III |
|
2 |
2500*2000*300 |
I/II/III |
|
3 |
3000*2000*300 |
I/II/III |
|
4 |
3500*2000*300 |
I/II/III |
|
5 |
4000*2000*300 |
I/II/III |
|
6 |
4500*2000*300 |
I/II/III |
|
7 |
5000*2000*300 |
I/II/III |
|
8 |
5500*2000*300 |
I/II/III |
|
9 |
6000*2000*300 |
II/III |
|
10 |
6500*2000*300 |
II/III |
|
11 |
7000*2000*300 |
II/III |
|
12 |
8000*2000*300 |
II/III |
Other sizes and surface accuracy on request!
Large plates can be connected by single piece as following:
|
L(mm) |
W(mm) |
|||||
|
|
|
2000 |
2500 |
3000 |
3500 |
4000 |
|
3500 |
3500 |
2000 |
1250+1250 |
1500+1500 |
1500+2000 |
2000+2000 |
|
4500 |
4500 |
|||||
|
5500 |
5500 |
|||||
|
6500 |
6500 |
|||||
|
7500 |
7500 |
|||||
|
8500 |
4000+4500 |
|||||
|
9500 |
4000+5500 |
|||||
|
10500 |
4000+6500 |
|||||
|
11500 |
4000+7500 |
|||||
|
12500 |
4000+4000+4500 |
|||||
|
13500 |
4500+4500+4500 |
|||||
|
14500 |
4000+4000+6500 |
|||||
|
15500 |
4000+4000+7500 |
|||||
|
16500 |
4500+4500+7500 |
|||||
|
17500 |
5500+5500+6500 |
|||||
|
18500 |
5500+6500+6500 |
|||||
|
19500 |
6500+6500+6500 |
|||||
|
20500 |
6500+6500+7500 |
|||||
