The T-slot plate is a T-slot on the cast iron bed plate working surface. The T-slot is used to fix the workpiece with bolts and screws, facilitating welding and assembly work. The size of the T-slot should be determined according to the size of the bolts used, and the specifications and dimensions of the T-slot are generally customized according to customer needs.
(3).jpg)

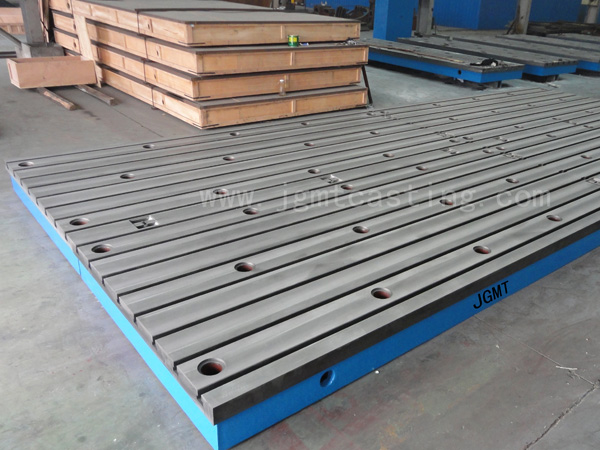

cast iron T-slot plate
Application of T-slot plate: mainly used to fix workpieces. The cast iron T-slot plate is also a basic platform for fitter workers to debug equipment, assemble equipment, and repair equipment.
Precautions for processing T-slot plates:
1. When planing the grooves of T-slots with cast iron plates, the cutting amount is required, and manual cutting should be used to avoid damaging the cutting tools and workpieces.
2. In the process of planing T-slots, pay attention to the non-cutting part of the tool not to rub or collide with the cast iron plate, so as to avoid accidents or waste products.
3. At the end of each cutting stroke and the beginning of the return stroke, the planer should be lifted out of the groove. Therefore, the front and rear overtravel should be appropriately enlarged, so that there is ample room and space to lift or drop the knife.
T-slot platform material: high-strength cast iron HT200-300, the working surface hardness is HB170-240, after two manual treatments (artificial annealing 600 degrees -700 degrees and natural aging for 2-3 years), the accuracy of this product is stable and wear-resistant Good performance.
Jinggong Measuring Tools Producing Co., Ltd is specializing in manufacturing and exporting all kinds of cast iron products，especially for cast iron floor plates, cast iron surface plates, cast iron clamping plates, cast iron angle plates, cast iron box table and other machine tool castings. Our engineering enables us to design the cast iron plates and tables according to DIN Standards, Indian Standards and Chinese Standards, machining by CNC machine tools and install in the world market.
