1. In order to prevent the deformation of the cast iron clamping table, when hoisting the cast iron platform, four steel wire ropes of the same length should be used to hang the four lifting holes on the cast iron platform at the same time, and the cast iron platform should be smoothly hoisted on the transportation tool.



2. Padded and level the support points of the cast iron clamping table to ensure that each support point is evenly stressed and the entire cast iron platform is stable.



3. During the installation of the cast iron clamping table, the support points of the cast iron platform should be well-padd and solidified with adjusting pads, and the cast iron platform will be adjusted to the qualified accuracy by the technicians.



4. When using the cast iron clamping table, handle the supporting parts with care, and don't move rough workpieces on the cast iron platform, so as to avoid damages such as bumps and scratches on the working surface of the cast iron platform.



5. In order to prevent the overall deformation of the cast iron clamping table, after use, the workpiece should be removed from the cast iron platform to avoid deformation of the cast iron platform caused by heavy pressure on the cast iron platform for a long time.



6. When the cast iron clamping table is not in use, clean the working surface in time, and then apply a layer of anti-rust oil and cover it with anti-rust paper. Cover the cast iron platform with the outer packaging of the cast iron platform to prevent accidental damage to the cast iron Damage to the working surface of the platform.



7. The cast iron clamping table should be installed in a ventilated and dry environment, and away from heat sources, corrosive gases, and corrosive liquids.



8. The cast iron clamping table is subject to regular weekly inspection according to the standard, and the verification period can be 6-12 months according to the specific situation.





cast iron clamping table

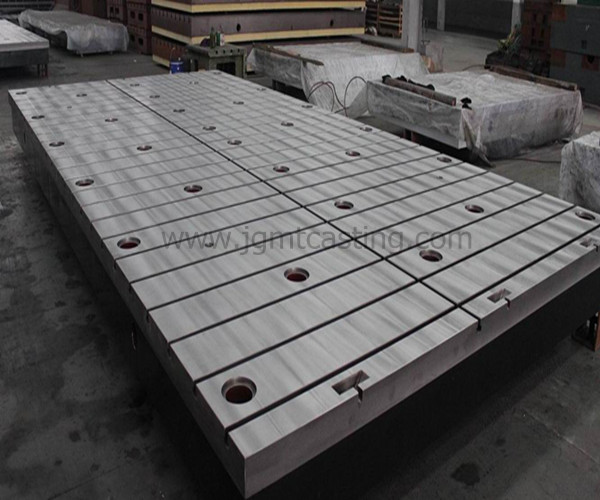

Jinggong Measuring Tools Producing Co., Ltd is specializing in manufacturing and exporting all kinds of cast iron products，especially for cast iron floor plates, cast iron surface plates, cast iron clamping plates, cast iron angle plates, cast iron box table and other machine tool castings. Our engineering enables us to design the cast iron plates and tables according to DIN Standards, Indian Standards and Chinese Standards, machining by CNC machine tools and install in the world market.
