Because the welding platform is provided with ribs, the structural strength of the cast iron mold can be improved, which is beneficial to prevent excessive internal stress and cracking.

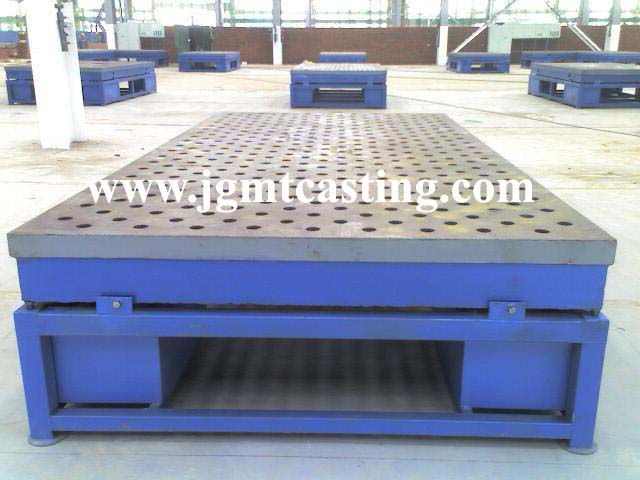

cast iron welding platform



The general distance between the ribs of the welding platform is 500mm. The reinforcing ribs and ribs at the bottom are designed to improve the stability of the plane; the reinforcing ribs are located at the bottom of the groove corresponding to the bottom of the vehicle body. The test plate is provided with ribs, which can improve the structure of the cast iron mold. The strength helps prevent excessive internal stress and cracking; and the 500 * 500 small flat bottom fixed to the upper end of the stiffener and the bottom of the car body is in a meter font.

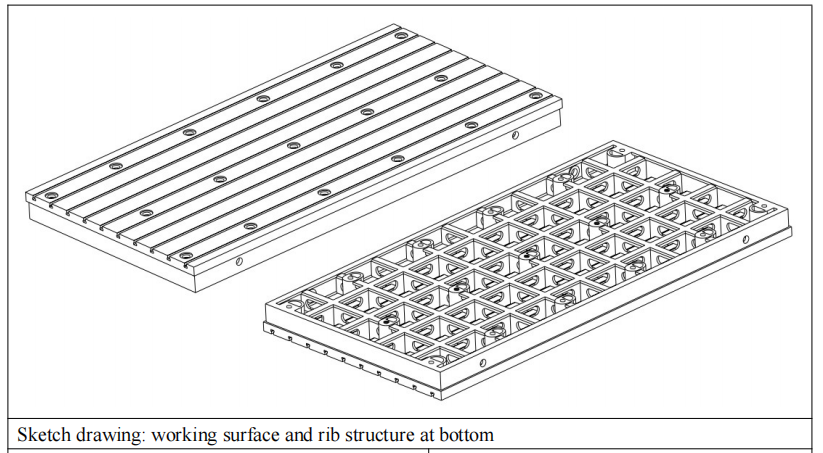

stiffeners in the welding platform



Jinggong Measuring Tools Producing Co., Ltd is specializing in manufacturing and exporting all kinds of cast iron products，especially for cast iron floor plates, cast iron surface plates, cast iron clamping plates, cast iron angle plates, cast iron box table and other machine tool castings. The products have the features of reasonable design, stable structure, superior quality and competitive price.
