When customers choose cast iron T-slot platform (T-slot flat plate) products, they can choose a suitable specification according to the platform's own load-bearing capacity.

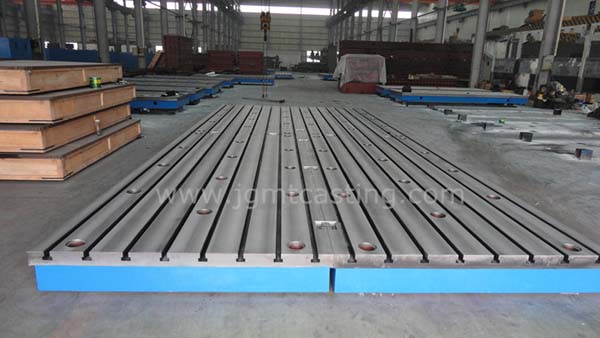

cast iron T-slot flat plate



1. Alias: T-slot platform, T-slot flat plate, T-slot assembly platform, T-slot welding platform, T-slot riveting welding platform, T-slot test platform, T-slot basic platform, single T-slot platform .



2. Purpose: It is used as a benchmark for assembly, debugging, welding and riveting of power machinery and equipment, with T-shaped grooves on the surface, which can fix machinery and equipment.



3. Material: gray cast iron HT200-250, working surface hardness is HB170-240, the casting has been manually annealed at 600℃-700℃ or natural aging for 2-3 years, the internal stress has been removed, the precision is stable, and the abrasive resistance is good.



4. Specifications: 100×100—3000×6000 (mm), non-standard specifications can be manufactured according to user requirements.



5. Accuracy: According to the GJ standard metrological verification regulations, they are level 3 and precision planing.



6. Surface treatment: the working surface adopts the scraping and grinding process, and the coloring method is used for inspection, and the plane accuracy is verified. The working surface is generally provided with T-slots, and long holes or round holes can also be processed according to requirements.
