The spliced cast iron plate (spliced platform) is suitable for larger size more than 4000X8000mm, because the area of a single piece is too large, and it is not easy to transport or install the platform. The spliced cast iron plate was completed by splicing small-size cast iron platforms. This way of splicing has no effect on the use.

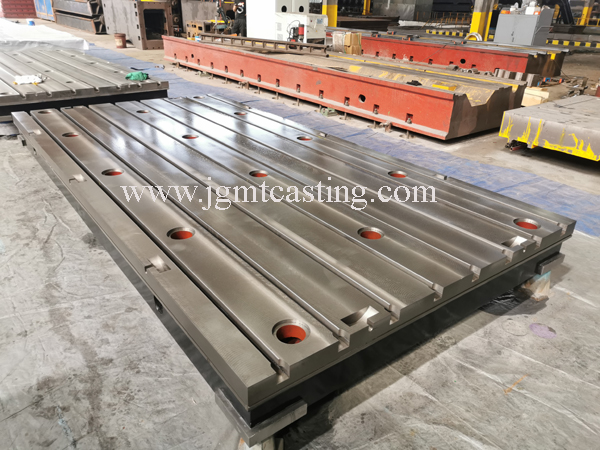

single cast iron plate 4000*2000*250mm



The working surface hardness of the splicing cast iron plate (splicing platform) is 170-220, and it is made of high-strength cast iron HT200-300. The casting process used for the splicing plate is resin sand casting. It is a process of smelting metal into a liquid that meets certain requirements and pouring it into a casting mold. After cooling, solidification, and cleaning, a casting with a predetermined shape, size and performance is obtained. Because the casting blank is almost formed, it can achieve the purpose of avoiding machining or a small amount of processing, reducing the cost and time to a certain extent. The precision of the splicing plate (splicing platform) is stable and the wear resistance is better.



Note on the use of spliced cast iron plate: It is the same as the maintenance of cast iron plate/table. The tablet must be installed and debugged first when using it. Then, wipe the working surface of the plate clean, and use it after confirming that there is no problem. During use, pay attention to avoid excessive collision between the workpiece and the working surface of the plate to prevent damage to the working surface of the plate; the weight of the workpiece is not allowed to exceed the rated load of the plate, otherwise it will reduce the work quality, and may damage the structure of the plate, or even cause the plate to deform, damage it and make it unusable.



After the splicing plate is used, the working surface should be washed in time, and then coated with a layer of anti-rust oil, and covered with anti-rust paper. Cover the cast iron plate with the outer packaging of the cast iron plate to prevent accidental damage to the cast iron plate. For damage to the working surface, the plate should be installed in a ventilated, dry environment, and away from heat sources, corrosive gases, and corrosive liquids. Regular testing, the verification period can be 6-12 months depending on the specific situation.
