The cast iron cube table is mainly used for the inspection of the parallelism and perpendicularity of the parts and supports the workpiece during scribing. One of the working surfaces has a V-shaped groove; it is generally a cube or a rectangular parallelepiped with the same side length. It is used for three-dimensional scribing by fitter measurement and inspection of parallelism, perpendicularity and various position errors of parts. Square boxes and rectangular tubes of various specifications and contours can also be produced according to user requirements.

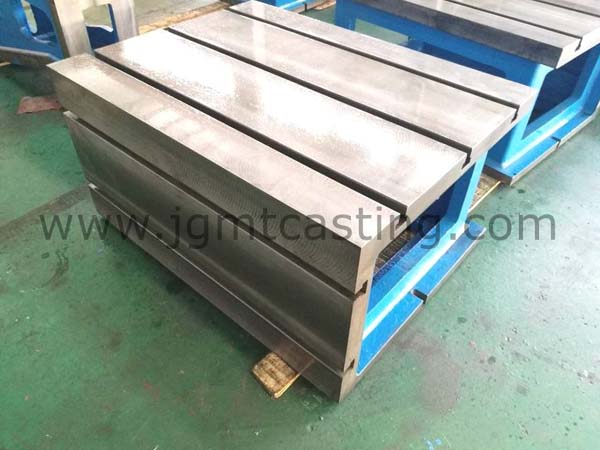

cast iron cube table



Cast iron cube tables are divided into inspection square boxes, crossed square boxes, T-slot square boxes, V-groove square boxes, assembly square boxes, magnetic square boxes, universal square boxes, and universal angle square boxes. It is an important auxiliary tool in flat panel measurement, used for fitter's three-dimensional marking, inspection and marking of the parallelism and straightness of mechanical parts.



The material of the cast iron cube table : HT200-300. The accuracy can be divided into zero, first, second, third. General speaking, zero, first, second, for inspection, and third for marking. Cast iron box structure: It is a cube made of gray iron. Belongs to the platform category.



There is a bracket on cube table, which is used to inspect or mark the arbitrary angle of the precision workpiece. Fixer suitable for measuring and engraving marks. It is mainly used to check the parallelism and perpendicularity of parts and to support the workpiece when scribing.



Inspection requirements: each working surface of the square box must not have rust, scratches, cracks, dents and other defects that affect the measurement performance. The non-working surface should be sanded and painted, and the edges should be chamfered.
