The bottom of the trolley is composed of grates arranged on the beam of the trolley frame. The life and shape of the grate has a great impact on production. Generally, the grating material is required to be able to withstand severe temperature changes, resist high-temperature oxidation, and have sufficient mechanical strength. The materials of casting grates are mainly cast steel, cast iron, chromium-nickel alloy steel, etc. The grates of ordinary materials are generally short and wide, which reduces the effective ventilation area. At present, the grate is developing in the direction of long, narrow and good material, which is beneficial to sintering production.



The life of the trolley mainly depends on the life of the trolley frame. According to the analysis, the damage of the trolley is mainly due to the change of thermal cycle, as well as the crack and deformation caused by the contact with the combustion material. In addition, there is also the burning loss of high temperature airflow, so it is recommended that the material of the trolley be made of weldable cast iron or steel with a small amount of manganese and chromium added.

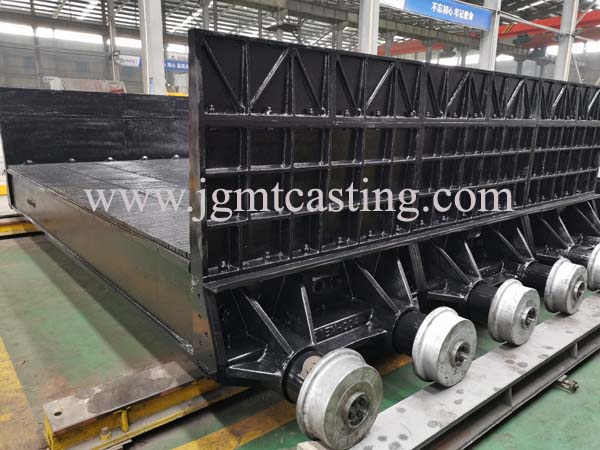

Sintering trolley car
