T-slot bent plates are used for component inspection and clamping in machining. There are many types of T-slot bent plates, such as cast iron bent plates, right-angle bent plates, ordinary bent plates, spliced bent plates, and right-angle bent plates. It is used to check the 90-degree angle of the workpiece, the mutual perpendicularity of the related surfaces of the parts when repairing the equipment, and it is also often used for the fitter's scribing. It can also be commonly used for inspection, installation, and vertical inspection of machine tools. It can also check the verticality of workpieces on cast iron plates. It is suitable for high-precision machinery and instrument inspection and non-verticality inspection between machine tools.

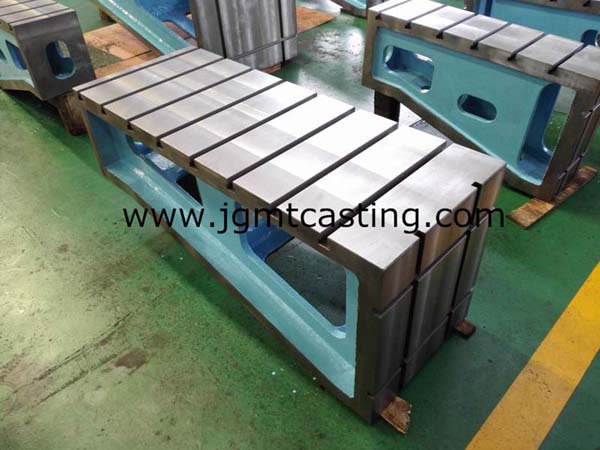

cast iron bent plate



Do not use and store the bent plate in a humid, corrosive, or too high or low temperature environment. When using it, install and debug the bent plate first, then wipe the working surface of the bent plate clean, and use it after confirming that there is no problem. The cast iron bending plate is made of high-strength cast iron, and the hardness of the working surface is HB170-240. After two manual treatments and natural aging, the accuracy is more stable and the wear resistance is strong.



Cast iron bent plates are manufactured in strict accordance with standards. The working surface adopts a scraping and grinding process to inspect the 90 degree angle of the workpiece. When the equipment is repaired, it is used to inspect the mutual perpendicularity of the relevant surfaces of the parts. It is also often used for the inspection and machinery of the fitter's marking and parts.

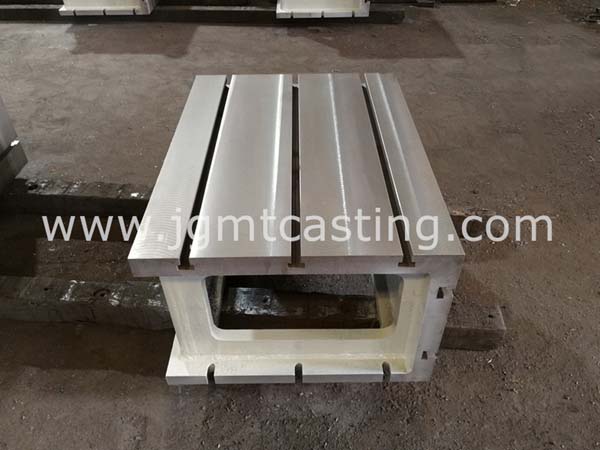

cast iron box table



Jinggong Measuring Tools Producing Co., Ltd is specializing in manufacturing and exporting all kinds of cast iron products，especially for cast iron floor plates, cast iron surface plates, cast iron clamping plates, cast iron angle plates, cast iron box table and other machine tool castings. The products have the features of reasonable design, stable structure, superior quality and competitive price.
