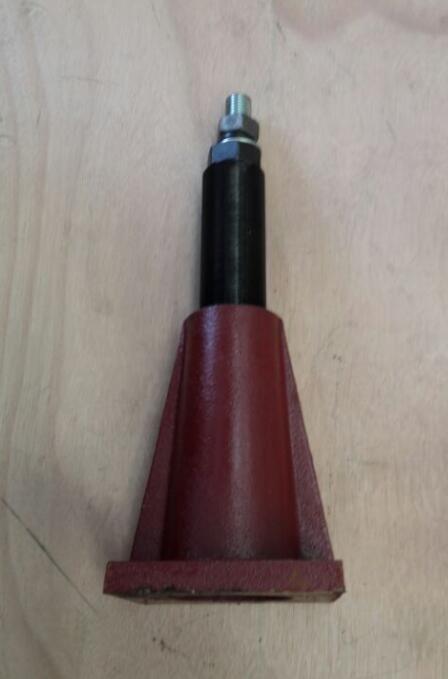

The leveling support is mainly composed of an anchor body, an adjusting bolt and an adjusting nut. leveling supports are also called ground anchor. They are used for supporting installation of machine tools, large-scale assembly platforms, large-scale floor slabs, and large-scale assembly platforms, and adjust the level, so that multiple motor test platforms can be adjusted to a flatness, which is better than a pad iron. Adjustable, convenient and not easy to change.





leveling support for cast iron plates



The main steps for the leveling support to install the motor test platform are:



1. First unscrew the small nut of the ground anchor and take out the upper pad, then loosen the support nut of the motor test platform until the thread of the bolt can not be seen.



2. Lift the large cast iron motor test platform with a crane, insert the ground anchor screw into the reserved ground anchor hole of the cast iron plate, and then screw on the ground anchor nut.



3. Slowly put the motor test platform and the ground anchor into the reserved pit. The ground anchors should all be in the middle of the pit.



4. After the cast iron platform is placed at a certain height, pour grout into the ground anchor pit from the position of the ground anchor hole of the platform, wait 48 hours, and start to fine-tune the ground anchor when the cement reaches more than 90% strength , So that the accuracy of the motor test cast iron platform can reach the expected goal.



5. After the accuracy of the motor test platform is adjusted, the accuracy should be inspected half a year later. If there is a deviation, then adjust it, and then inspect and adjust it once a year.
