The base plate of the dynamometer is also called the testing plate of the dynamometer. It is the basic cast iron plate and an important part of the dynamometer. The dynamometer is mainly used to test the power of the engine. It can also be used as a loading device for gearboxes, reducers, and gearboxes to test their transmission power. Mainly divided into hydraulic dynamometer, eddy current dynamometer, electric dynamometer.

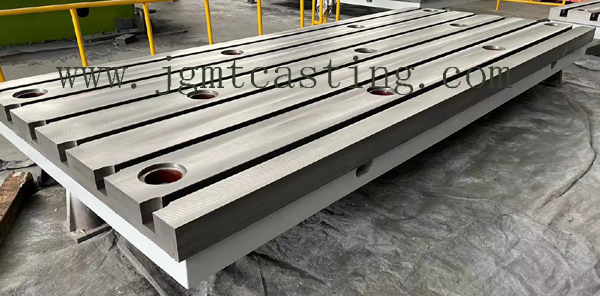

dynamometer base plate



The dynamometer base is composed of a toothed stator, a hollow-core hysteresis cup rotor, an excitation coil, a bracket, and a base plate. No matter which type of dynamometer, a high-precision dynamometer base plate is required. Generally, it is made of cast iron casting, and the precision of the working surface is achieved by precision machining or manual scraping. If the working surface has a round hole or T-slot with strict size requirements, it needs to be processed by a CNC machining center.



Jinggong Measuring Tools Producing Co., Ltd is specializing in manufacturing and exporting all kinds of cast iron products, especially for cast iron floor plates, cast iron surface plates, cast iron clamping plates, cast iron angle plates, cast iron box table and other machine tool castings. The products have the features of reasonable design, stable structure, superior quality and competitive price.
