A belt sintering machine trolley heat insulation pad is a thermal insulation device for protecting the belt sintering machine trolley support beam, which mainly solves the technical problem of ore leakage caused by gaps in the workshop when the belt sintering machine trolley is running online. The new technical solution is: a belt sintering machine trolley heat insulation pad, which is a groove-shaped piece with an opening downward, and the shape of the groove matches the joint surface of the support beam. It is characterized in that the cross section of the heat insulation pad is asymmetrical structure, there is a boss on the outer side which is not assembled and combined with the grate bar. A plurality of flat-bottomed blocks are arranged at the bottom of the notch, which not only reduces the overall weight of the thermal insulation pad, but also ensures a firm contact surface with the support beam.

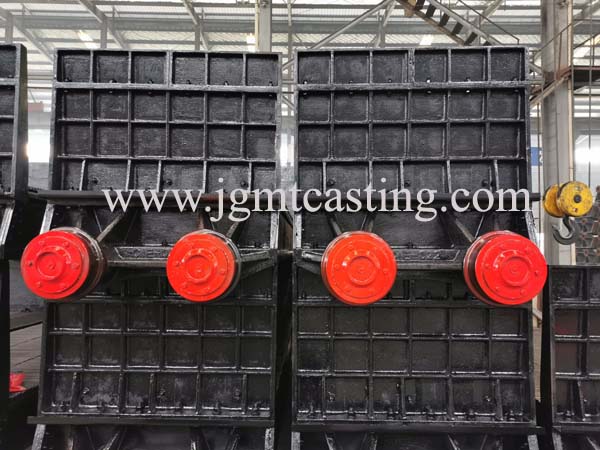

sintering table car

There are four specifications for the thermal insulation pad of the belt sintering machine trolley, and each piece weighs about 10kg. The materials used and the casting process are in full compliance with the requirements of the balustrade. Since the thermal insulation pad is directly put into assembly without processing, there are strict regulations on the surface roughness and dimensional accuracy of the thermal insulation pad, and grate bars should be hung on it, and the grate bars are also cast without processing. In this way, a certain gap is left in the design between the parts, so that the trolley has relative loosening (sliding) during the overturning and unloading process, resulting in a certain impact, which is conducive to the removal of small materials between the gaps. The dimensional accuracy requirements of the cast insulation pads need to be strictly controlled, and they need to be annealed after casting.
