Belt sintering machine is one of the most widely used iron ore sintering methods. Belt sintering machine is the main sintering equipment in the iron and steel industry, and its output accounts for 99% of the world's sintering ore. The sintering machine is composed of a closed track laid on the steel structure and a series of sintering trolleys that move continuously on the track.



The belt sintering machine consists of a sintering trolley, a sealing device, a steel structure frame and a transmission device. The trolley is an important part for placing the sintered material and performing draft sintering. It is composed of cast steel body, side panels, grates and rollers. According to the size of the sintering machine and the width of the trolley, there are 1.5m, 2.0m, 2.5m, 3.0m, 3.5m, 4.0m and 5.0m.



Since the trolley works at high temperature, it is not only required that the material can withstand high temperature, but also the structure is required to be reasonable to reduce the influence of high temperature deformation. There is a sealing device (water pipe type seal or spring type seal) between the trolley and the bellows slideway, which plays an important role in reducing air leakage and saving power consumption. Between the bellows baffles of the nose and tail and the trolley, a heavy hammer linkage is used to seal. In order to ensure that the trolley can still run smoothly after being heated and expanded, a special swing frame or a horizontally movable tail star wheel is set at the unloading end of the tail. The sintering trolley moves forward with the help of the transmission device of the head part, and the transmission device is composed of a motor, a reducer and a large transmission gear.

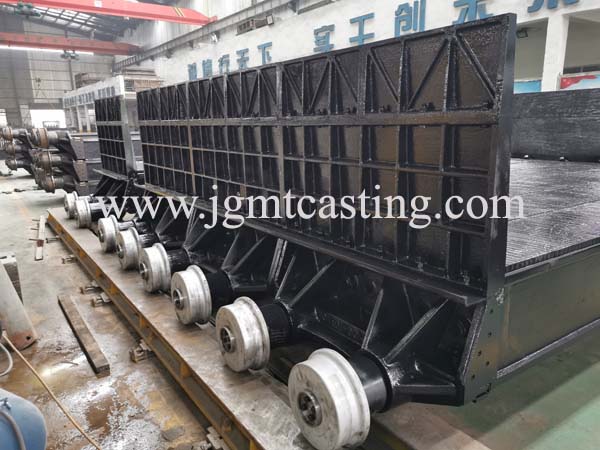

sintering table car
