1. What is the principle of scraping?



The process method of scraping the thin layer on the surface of the workpiece with a scraper is called scraping, and scraping is a finishing method. Scraping is to apply a layer of display agent between the workpiece and the calibration tools or other matching workpieces. After grinding, the higher parts of the workpiece are displayed, and then a scraper is used for micro scraping to scrape the higher metal floor. At the same time of scraping, the scraper also has the effect of pushing and calendering the workpiece, so that the repeated display and scraping can make the machining accuracy of the workpiece meet the predetermined requirements.

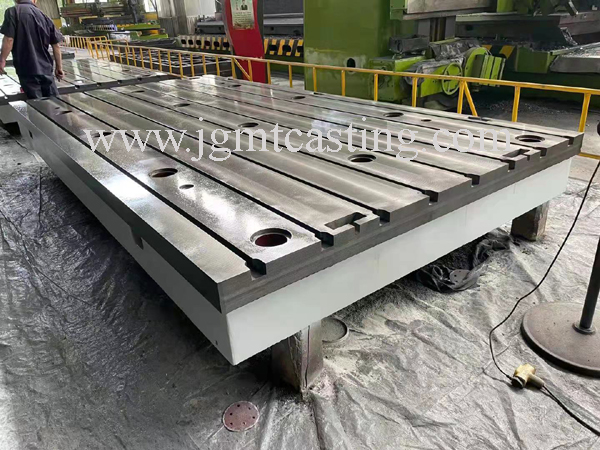

cast iron surface plate



2.What are the characteristics of scraping?



Scraping has the characteristics of small cutting amount, small cutting force, small heat generation, small clamping deformation, etc., there is no vibration, thermal deformation and other factors in machining, such as turning, milling, and planing, so it can obtain high dimensional accuracy, Contact accuracy, transmission accuracy and surface roughness. After scraping the surface of the workpiece, a relatively uniform micro-shallow pit is formed, which can create a good oil storage environment and improve the lubrication condition between relatively moving parts.



Jinggong Measuring Tools Producing Co., Ltd is specializing in manufacturing and exporting all kinds of cast iron products，especially for cast iron floor plates, cast iron surface plates, cast iron clamping plates, cast iron angle plates, cast iron box table and other machine tool castings. Our engineering enables us to design the cast iron plates and tables according to DIN Standards, Indian Standards and Chinese Standards, machining by CNC machine tools and install in the world market.
