The purpose of the motor test platform (motor testing plate):

It is mainly used for power experiments of machinery, motors, and engines, with good plane stability and toughness. There are T-slots and bolt holes on the surface, which can be used to fix the experimental equipment.

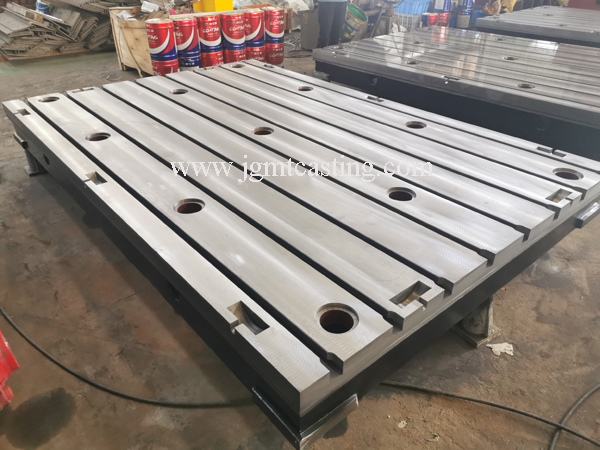

Motor test platform（T slots plate）





Motor test platform (motor testing plate) material:

High-quality &high-strength gray cast iron HT250-300, working surface hardness HB200-240, after two manual annealing at 600℃-700℃, the internal stress is completely removed. The product has stable accuracy and good wear resistance.



Motor test platform (motor testing plate) specifications:

1000×1000—3000×6000 (test platforms larger than this specification can be spliced and manufactured; special-shaped specifications can be customized according to drawings).



The accuracy of the motor test platform (motor testing plate):

According to the national standard metrological verification regulations, it can be processed into level 2, level 3, and fine planing according to customer requirements.



The surface treatment of the motor test platform (motor testing plate):

The working surface is machined with T-slots, and bolt holes are also available. The surface is manually scraped to ensure plane accuracy. The unprocessed surface is removed from the molding sand and coated with anti-rust paint.



Motor test platform (motor testing plate) style: Stiffener plate type.



Jinggong Measuring Tools Producing Co., Ltd is specializing in manufacturing and exporting all kinds of cast iron products，especially for cast iron floor plates, cast iron surface plates, cast iron clamping plates, cast iron angle plates, cast iron box table and other machine tool castings. Our engineering enables us to design the cast iron plates and tables according to DIN Standards, Indian Standards and Chinese Standards, machining by CNC machine tools and install in the world market.
