The scope of application of shockproof pad iron: metal processing machine tools, forging machine tools, textile machinery, printing machinery, food processing machinery, rubber manufacturing machinery, cable processing machinery, generators and heavy equipment.

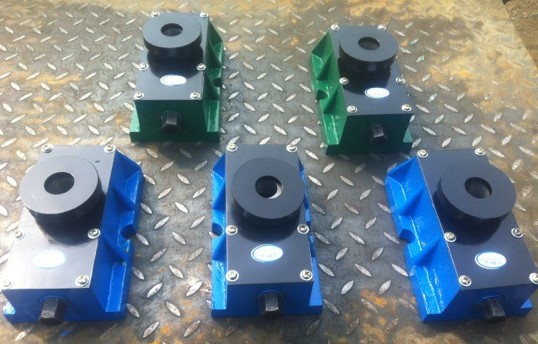

shockproof pad iron



Anti-vibration pad iron composition: It is composed of inner support, rubber pad, outer seat, adjusting plate and screw. The load of the machine tool equipment is transmitted to the rubber pad through the adjustment plate and the inner support, which can dampen the longitudinal vibration of the machine tool equipment. The adjustment plate can adjust the machine tool equipment up and down and significantly improve the load capacity of the iron; the outer seat is fixed to the concrete floor by the pipe expansion screw , can reduce the lateral vibration of machine tool equipment. This product has simple structure, convenient adjustment and strong shock absorption performance.



The anti-vibration iron damping rubber attenuates the vibration of the machine itself, reduces the transmission of vibration force, prevents the transmission of vibration force, and the processing dimensional accuracy and quality. Control building structure resonance to transmit vibration force and noise. Make various types of machine tools for rough and finish processing to form a production unit to adapt to the development of logistics technology.



How to use the anti-vibration shim: Put the required shim under the foot hole of the machine tool, insert the bolt, screw it until it is in contact with the load-bearing plate, and then adjust the machine level (bolt clockwise, the machine rises): adjust the machine after leveling, tighten the nut to fix the horizontal state. Because of the phenomenon of rubber creep, when the horn is used for the second time, adjust the machine level again after two weeks.



The installation of the machine tool does not require anchor bolts to be fixed to the ground. Good vibration reduction and considerable vertical deflection make the machine stable on the ground. Save installation costs and shorten the installation cycle. The position of the machine tool can be changed at any time according to the production, and the second installation cost makes it possible to install the machine tool upstairs. The level of the machine tool can be adjusted, and the adjustment range is large and convenient.
