Cast iron scribing plate installations are bracket installation, ground anchor installation, horn installation and anchor bolt installation. The definition of scribing is that according to the requirements of the drawing, the operation of scribing the outline of the part to be processed or the point and line as the reference on the blank or semi-finished workpiece with a scribing tool is called scribing.



Bracket installation: lightly place the cast iron platform on the bracket, adjust the fine-tuning bolts on the bracket to the level of the cast iron platform, the bracket can reduce the labor intensity of the inspector, and the height of the bracket is generally about 500-600mm.



Ground anchor installation: The cast iron platform can be designed for ground anchor installation. First, the user makes the foundation and pre-embedded holes according to the drawings of the cast iron platform (flat plate), and then puts the ground anchor in the reserved hole set in advance, and then installs the cast iron platform. Adjust the level.



Pad iron installation: The cast iron platform is adjusted to the level, the load is evenly distributed on each fulcrum, the ambient temperature is (20±5) ℃, and vibration should be avoided during use.



Anchor bolt installation: The cast iron platform is designed and installed according to the user's requirements, and the anchor bolt is installed.

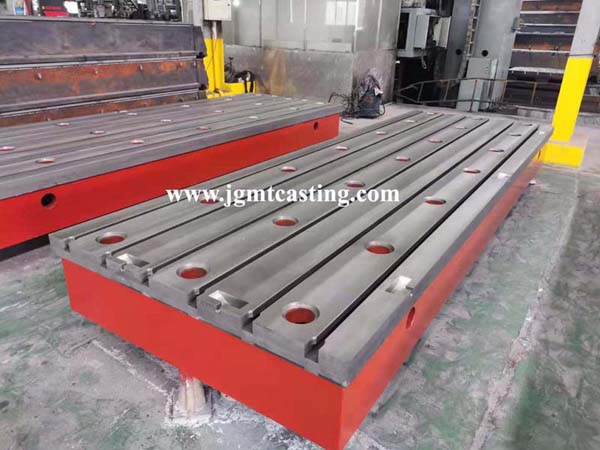

cast iron scribing plate



The cast iron platform is the main benchmark tool for marking, its placement should be stable and firm, and the top should be kept level. The plane of the cast iron platform should be used evenly throughout to avoid local concave grinding. keep clean. When not in use for a long time, it should be oiled to prevent rust and covered with a protective cover.
