1. The cast iron platform is not suitable for installation in places with humidity, away from heat sources, corrosive gases and corrosive liquids.



2. When installing, first fix the cast iron platform on the bracket and then debug it. Care should be taken to avoid unnecessary damage caused by bumping the platform. Place the cast iron platform flat on the ground, adjust the stability of the four corners by hand, and fine-tune the movable feet until Stablize.



3. Place the platform on the bracket, adjust its fulcrum position, and try to be as close to the center as possible.



4. Initially adjust the feet so that each fulcrum is evenly stressed.



5. Use a level measuring instrument (level or electronic level) to detect the level of the plate, and fine-tune the relevant fulcrum until it conforms to the level position.



6. After the initial adjustment is qualified, after standing for 12 hours, if it is not qualified, it needs to be adjusted again, and it can be used only if it is qualified.



7. Periodic inspection and maintenance according to the actual field environment after use.

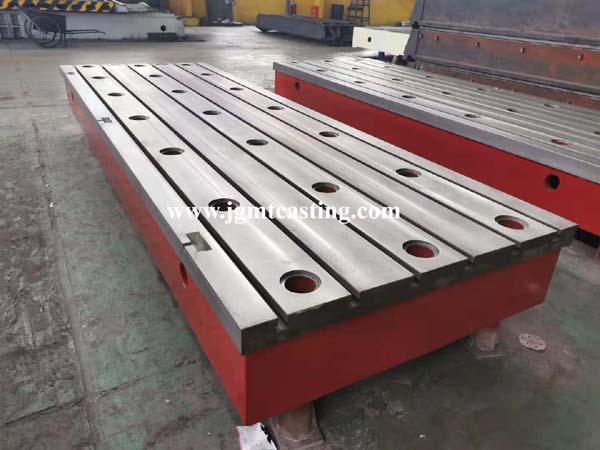

cast iron T slots floor plate



Jinggong Measuring Tools Producing Co., Ltd is specializing in manufacturing and exporting all kinds of cast iron products，especially for cast iron floor plates, cast iron surface plates, cast iron clamping plates, cast iron angle plates, cast iron box table and other machine tool castings. The products have the features of reasonable design, stable structure, superior quality and competitive price.
