1. In order to prevent the deformation of the cast iron T-slot platform, when hoisting the cast iron T-slot platform, four steel wire ropes of the same length should be used to hang the four lifting holes on the cast iron slab. At the same time, stabilize the cast iron T-slot platform hoisting on the transportation tool.

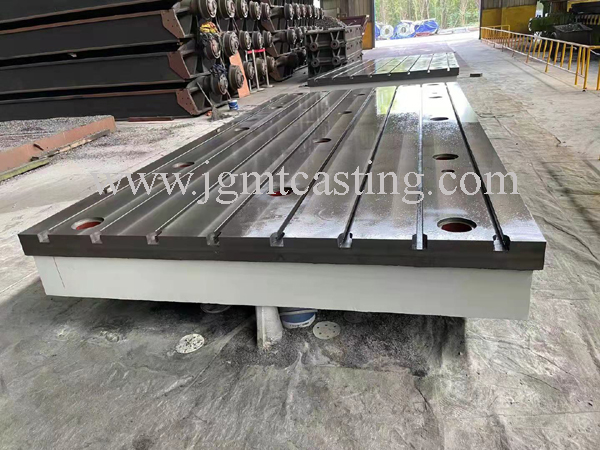

cast iron T-slot platform



2. The cast iron T-slot platform platform is very susceptible to the ambient temperature in the workshop. Try to avoid using it in high and low temperature weather, especially the inspection work, because the temperature is more likely to cause heat to the platform. With the phenomenon of expansion and contraction, the inspection data will be inaccurate.



3. Try to avoid placing heavy working parts on the working surface of the welding platform for a long time. Long-term placement may cause diagonal deformation of the working surface and affect use.



4. During use, workers must be asked to handle it gently to avoid excessive pressure. Special personnel must be sent to check the platform every week. If rust, cracks, or pores appear, timely repairs should be made.



5. However, maintenance is carried out once a week. If the platform is not used for a long time, please pay attention to apply a layer of anti-rust oil, which will help to avoid rust on the platform and prolong the service life.



The T-sloton the cast iron T-slot platform is processed by a planer or a gantry milling machine. T-slots cannot be directly machined by T-slot milling, because there is no spiral chip flute, and the chips cannot be discharged smoothly during grooving. It's easy to break. Note that the cutting fluid should be sufficient and the pressure should be large. First, use an end mill to make a straight slot, deep enough. Then use the T-slot to mill the T-slot. The working surface of the cast iron T-slot platform adopts the scraping and grinding process, and the coloring method is used for inspection, and the accuracy of the plane is verified. The working face generally has T-slots, and long holes and round holes can also be machined according to requirements. This cast iron T-slot platform is made of high-quality pure iron.



The cast iron T-slot platform can be active in the market and provide a basis for the operation of various large-scale experiments. It depends on the product quality and slotting advantages of the cast iron T-slot platform. The cast iron T-slot platform is widely used in the assembly, debugging, welding, riveting and other processes of power machinery and equipment.
