The belt sintering machine is driven by a hydraulic trolley, the speed of the trolley is adjustable, automatic ignition, on-machine sintering and on-machine cooling are adopted. After the iron ore powder is batched in the batching room, it is sent to the mixer for mixing and pelletizing; it is conveyed by the belt to the mixing silo of the belt sintering machine to complete the feeding. The distribution device evenly distributes the mixed sintered material in the trolley, and then ignites the surface of the sintered material through the ignition device to start sintering.

With the movement of the trolley, the material layer completes the sintering process from top to bottom under the ventilation state. After the sintering process, it enters the cooling section for cooling. The cooled sinter is unloaded into the single-roller crusher for crushing by the dumper. The crushed sinter is sent to the screening room by the belt conveyor for screening, and the finished ore is sent to the screen. To the finished product buffer silo, the bottoming material is sent to the bottoming silo by the belt conveyor. The flue gas passes through the dust suppression pipe, the flue to the dust removal system, and is discharged into the atmosphere through the exhaust fan. Larger dust particles are discharged into the lower water seal through the dust suppression pipe, and pulled out by the water seal zipper machine. Sintering exhaust system, cooling exhaust system, and other dust-raising points are equipped with dust removal devices, which can effectively reduce the pollution of dust to the environment.

Belt sintering machine is suitable for the sintering operation of large-scale ferrous metallurgy sintering plants. It is the main equipment in the process of exhausted sintering. of sulfur, phosphorus and other harmful impurities. The belt sintering machine is divided into several specifications of different lengths and different widths according to the sintering area. Users can choose them according to their output or site conditions. The larger the sintered area, the higher the yield.

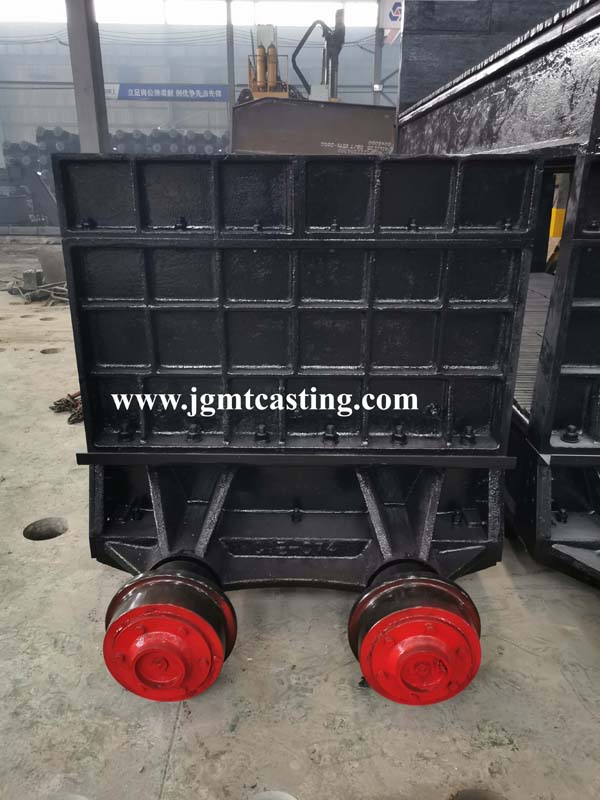

sintering table cars

Jinggong Measuring Tools Producing Co., Ltd is specializing in manufacturing and exporting all kinds of cast iron products，especially for cast iron floor plates, cast iron surface plates, cast iron clamping plates, cast iron angle plates, cast iron box table and other machine tool castings. The products have the features of reasonable design, stable structure, superior quality and competitive price.
