The belt sintering machine trolley is an important part of the sintering machine. The trolley is composed of car body, roller sleeve, wheel, axle, fence, side sealing plate of ignition furnace, grate bar, grate bar pressing block pin, heat insulation pad, elastic pressure sealing device, etc.



The trolley is an important part of the sintering machine, and its working conditions are harsh. During the use process, the trolley body is easily deformed and broken. The overall size of the sintering machine trolley ordered by a customer of a large domestic sintering plant is (2620×1000×440)mm3, the wall thickness of the casting is 30~80mm, the shape of the shaft head is Φ85*140mm; the shaft hole D=85mm. Weight 2200kg.



The original design is a split casting connected steel casting. The trolley body with this structure is often scrapped due to deformation and fracture during use. The working conditions determine that the material of the trolley body must have good comprehensive mechanical properties such as high temperature resistance and brittle fracture resistance. The material of ductile iron has high strength and high temperature resistance, and the cost is much lower than that of steel castings.

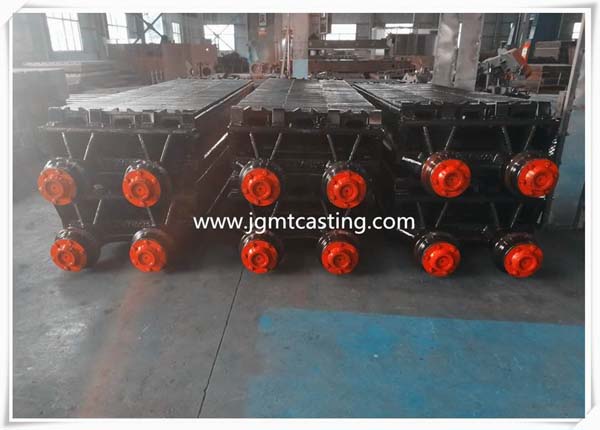

sintering table car
