T-slot Base Plates, Floor Plates, Bed Plates or Clamping Plates

  • Introduction

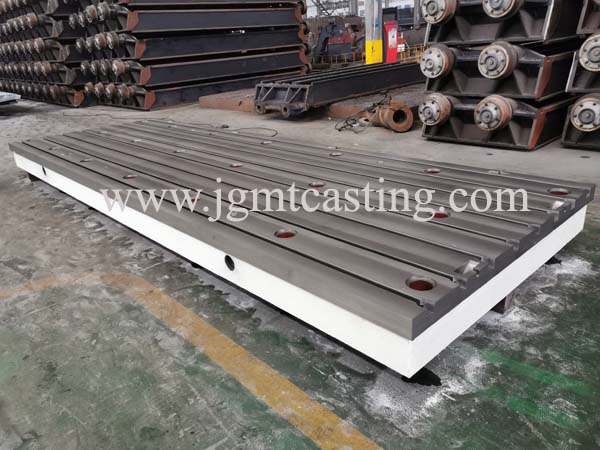

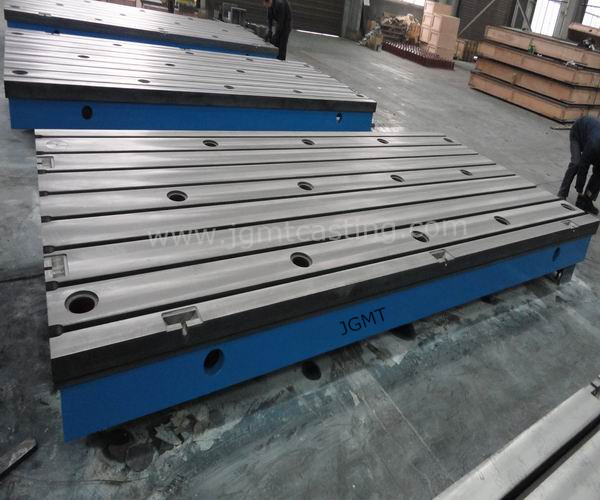

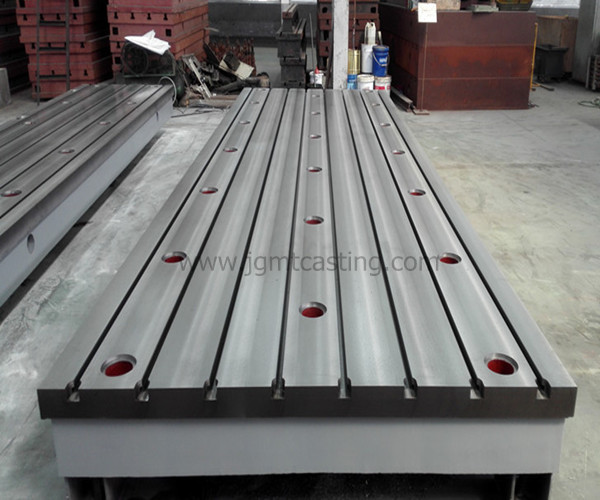

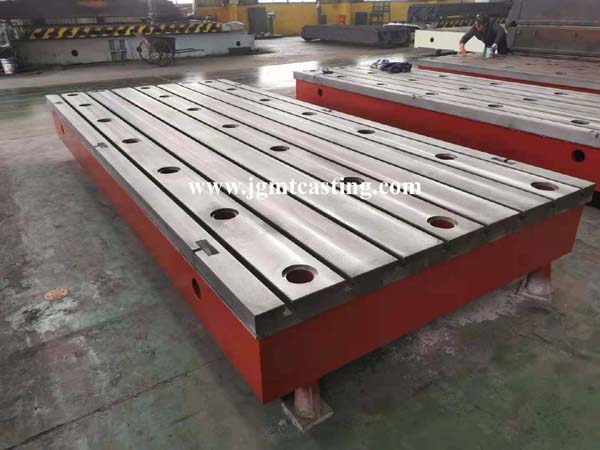

Jinggong T-slot Base Plates (Floor Plates, Bed Plates or Clamping Plates) are made from high-density cast iron. These plates allow for a wide range of ‘work-holding’ solutions.



Base Plates / Bed plates / T-slotted floor plates find application in engineering and manufacturing industries as precision bases for layout, marking, inspection and assembly work. They also find application for large fixtures, special tooling and production set ups. It also allows for an easy set-up and mounting for precision welding.



Standard plates have a Brinell hardness of between 180 – 200 HB and a tensile strength of 260 – 300 N/mm2. Surface machined to DIN876 and T-slots machined to DIN650.



Standard T-slot sizes 22, 28, or 36 can be manufactured, with fits ranging from H 7 to H 12. The popular distance between T-slots is 200 or 250 mm. T-slots in special or intermediate sizes can be provided.



The design, dimensions and load capacity of the plates can be adapted to the size and weight of the workpieces to be held. Pls. quote.



Standard sizes for reference:

No.

Sizes (mm)

Surface accuracy

(according to DIN876)

1

2000*2000*300

I/II/III

2

2500*2000*300

I/II/III

3

3000*2000*300

I/II/III

4

3500*2000*300

I/II/III

5

4000*2000*300

I/II/III

6

4500*2000*300

I/II/III

7

5000*2000*300

I/II/III

8

5500*2000*300

I/II/III

9

6000*2000*300

II/III

10

6500*2000*300

II/III

11

7000*2000*300

II/III

12

8000*2000*300

II/III

 Other sizes and surface accuracy on request!



Large plates can be connected by single piece as following:

L(mm)

W(mm)





2000

2500

3000

3500

4000

3500

3500

2000

1250+1250

1500+1500

1500+2000

2000+2000

4500

4500

5500

5500

6500

6500

7500

7500

8500

4000+4500

9500

4000+5500

10500

4000+6500

11500

4000+7500

12500

4000+4000+4500

13500

4500+4500+4500

14500

4000+4000+6500

15500

4000+4000+7500

16500

4500+4500+7500

17500

5500+5500+6500

18500

5500+6500+6500

19500

6500+6500+6500

20500

6500+6500+7500
