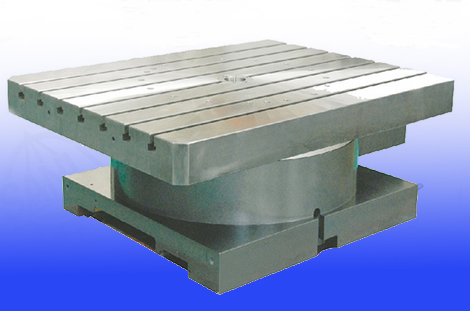

JGK56 series NC Indexing Rotary Tables

  • Introduction

Application

1. Suitable for boring machine, milling machine and machining centers.

2. Under NC system control, this series rotary table can realize the automatic indexing under the integer multiples of 5° or 1°.



Specifications

No.

Items

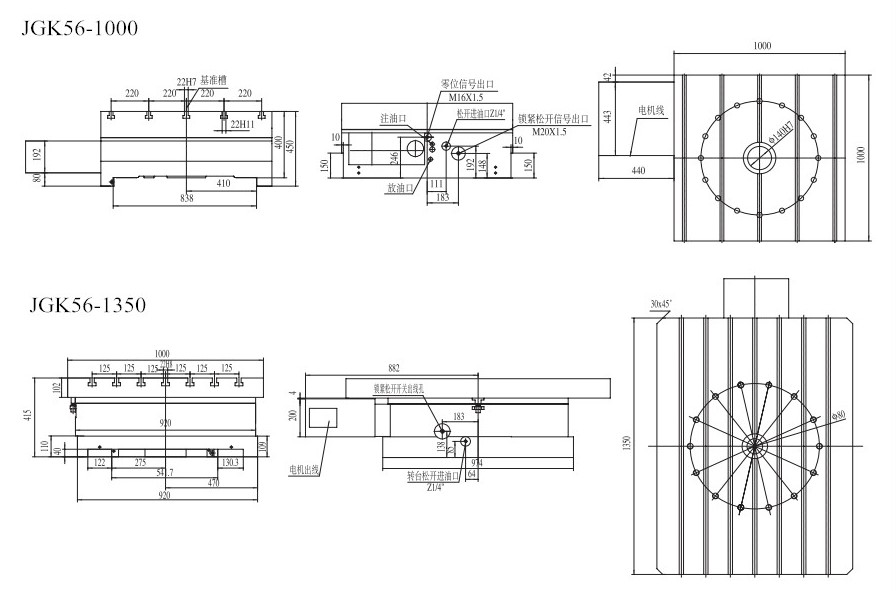

JGK56-1000

JGK56-1350

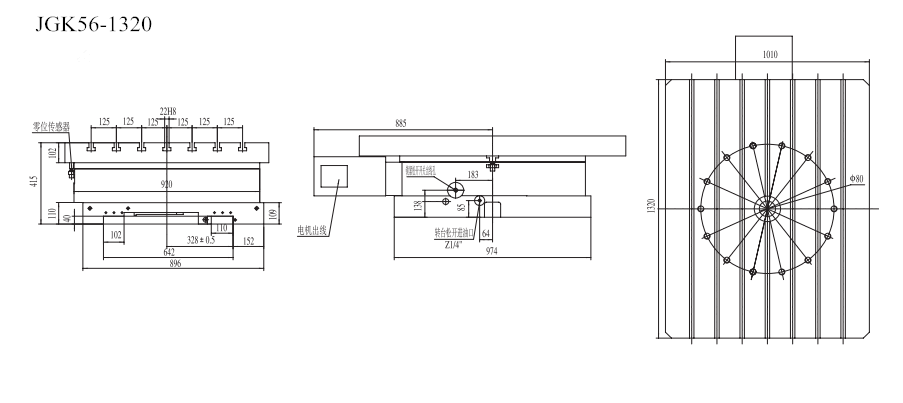

JGK56-1320

1

Turntable size (mm)

1000x1000

1000x1350

1010X1320

2

Center bore diameter (mm)

Φ140H7

Φ80H7

Φ80H7

3

Table height (mm)

450

415

415

4

T-slot size (mm)

22

22

22

5

Table graduation angle per pulse

2.5°

1°/5°

1°/5°

6

Total transmission ratio

1360

1360

1360

7

Max. speed  (r/min)

5.5

5.5

5.5

8

The torque of servo motor (N.m)

20

20

20

9

Max. tangential torque (N.m)

15000





10

Max. working pressure Mpa)

3.5





11

Dividing accuracy

7"

10"

10"

9

Accuracy of repeatability

3"

4"

4"

10

Bearing capacity (kg)

5000

5000

5000


Remarks

1.      Standard table sizes are from 1000mm~1350mm, others also can be produced according to the customer’s drawings.

2.      Table top could be round or square per your requirements.

3.      The motor should be prepared by customers themselves.
