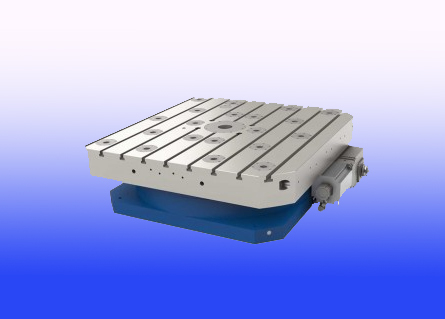

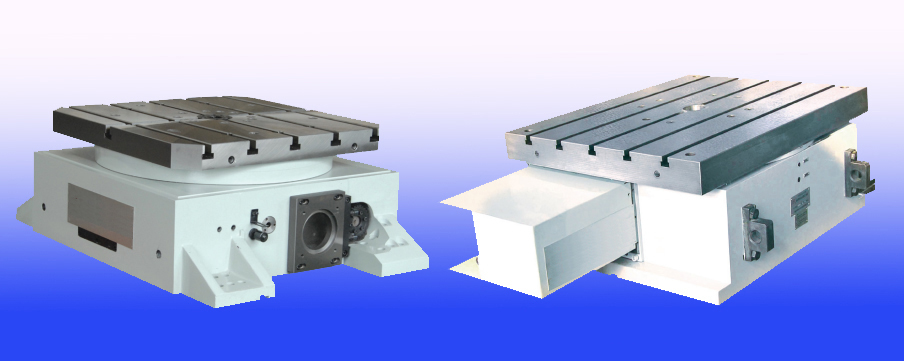

JG56 series NC Indexing Rotary Tables

  • Introduction

Application

Suitable for boring machine, milling machine and machining center to carrying out equal division (the spare parts).

Specifications

No.

Items

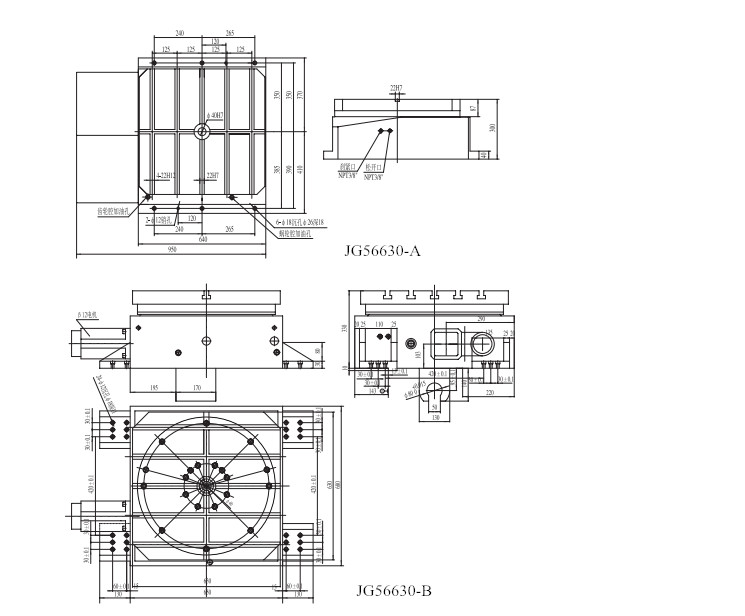

JG56630-A

JG56630-B

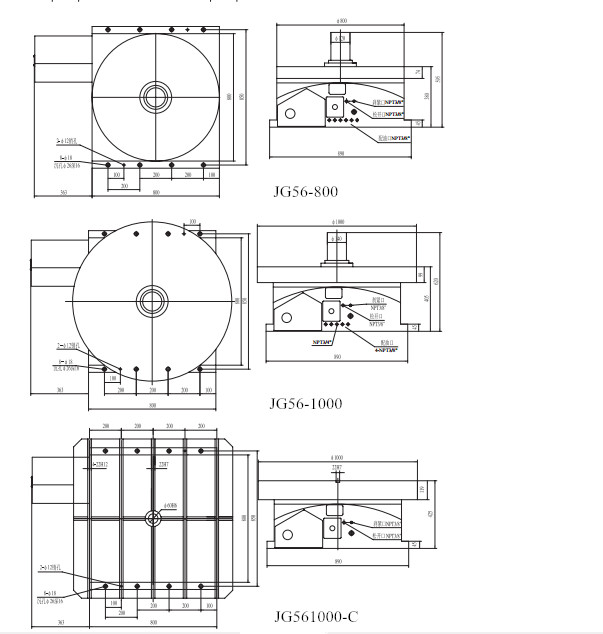

JG56-800

JG56-1000

JG561000-C



1

Turntable diameter (mm)

630X630

630X630

Φ800

Φ1000

1000X1000




2

Total height (mm)

300

330

380

405

425



3

Center bore diameter (mm)

Φ40H7

Φ40H7

WITH OIL

Φ60H6




4

Total transmission ratio

1:120

1:180

1:180

1:180

1:180



5

Table graduation angle per pulse

1°/5°

1°/5°

7.5°

7.5°

7.5°




6

The torque of servo motor (N.m)

12

12

18

18

18



7

 Clamp oil pressure (Pa)

35X105

35X105

35X105

35X105

35/40X105



8

Dividing accuracy

6"

10"

6"

6"

6"



9

Accuracy of repeatability

2"

4"

2"

2"

2"



10

Bearing capacity (kg)

1250

1200

2500

4500

4500



11

Approx. weight (kg)

700

700

1100

/

/



12

Standard electromotor

FANUCα12

FANUCβ12

FANUCα22i

FANUCα22i

FANUCα22i






Remarks



1.      Standard table sizes are from 630mm~1000mm, others also can be produced according to the customer’s drawings.
