- Introduction

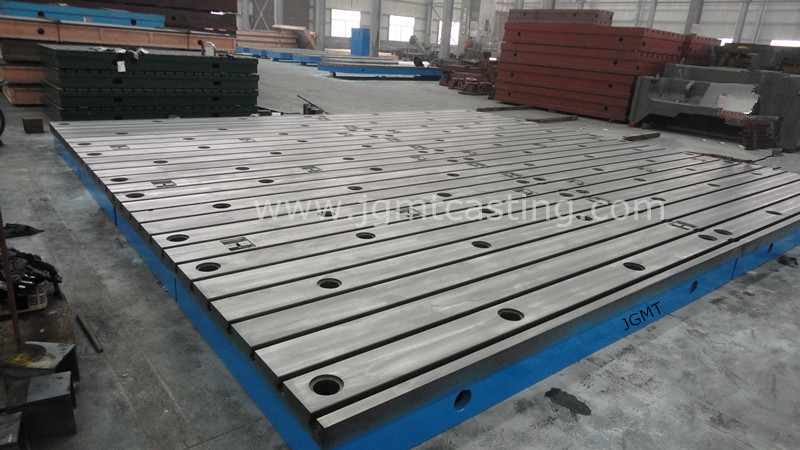

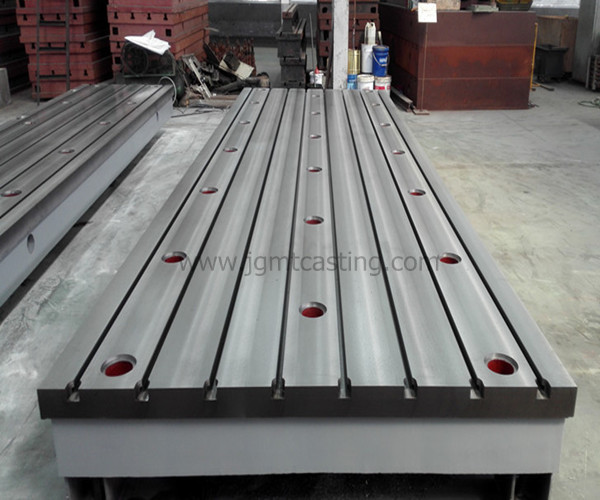

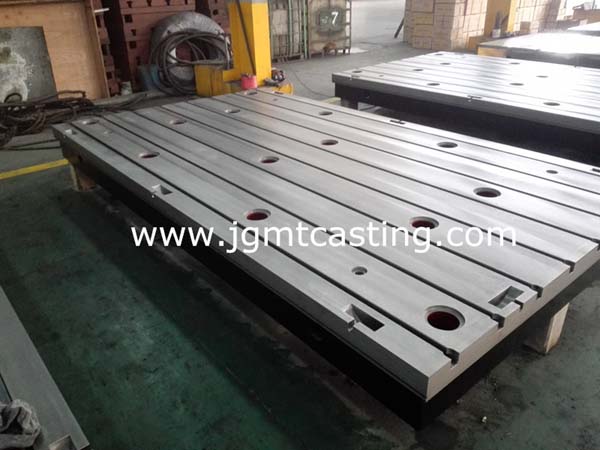

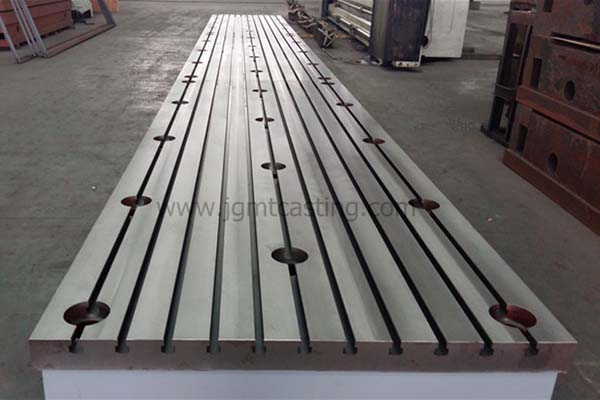

Jinggong Casting Iron T-slots Plates are made from high-strength grey cast iron. These plates offer flexible universal clamping possibilities for all types of work pieces.
The number and shape of the ribs can be adjusted to suit the specified loading requirements. The size of the T-slots in the plates is determined by the customer’s requirements in strength, tensile and compression.
Standard sizes:
|
No. |
Sizes (mm) |
Surface accuracy (according to DIN876) |
|
1 |
2000*2000*300 |
I/II/III |
|
2 |
2500*2000*300 |
I/II/III |
|
3 |
3000*2000*300 |
I/II/III |
|
4 |
3500*2000*300 |
I/II/III |
|
5 |
4000*2000*300 |
I/II/III |
|
6 |
4500*2000*300 |
I/II/III |
|
7 |
5000*2000*300 |
I/II/III |
|
8 |
5500*2000*300 |
I/II/III |
|
9 |
6000*2000*300 |
II/III |
|
10 |
6500*2000*300 |
II/III |
|
11 |
7000*2000*300 |
II/III |
|
12 |
8000*2000*300 |
II/III |
Other sizes and surface accuracy on request!
Large tables can be connected by single piece as following:
|
L(mm) |
W(mm) |
|||||
|
|
|
2000 |
2500 |
3000 |
3500 |
4000 |
|
3500 |
3500 |
2000 |
1250+1250 |
1500+1500 |
1500+2000 |
2000+2000 |
|
4500 |
4500 |
|||||
|
5500 |
5500 |
|||||
|
6500 |
6500 |
|||||
|
7500 |
7500 |
|||||
|
8500 |
4000+4500 |
|||||
|
9500 |
4000+5500 |
|||||
|
10500 |
4000+6500 |
|||||
|
11500 |
4000+7500 |
|||||
|
12500 |
4000+4000+4500 |
|||||
|
13500 |
4500+4500+4500 |
|||||
|
14500 |
4000+4000+6500 |
|||||
|
15500 |
4000+4000+7500 |
|||||
|
16500 |
4500+4500+7500 |
|||||
|
17500 |
5500+5500+6500 |
|||||
|
18500 |
5500+6500+6500 |
|||||
|
19500 |
6500+6500+6500 |
|||||
|
20500 |
6500+6500+7500 |
|||||
